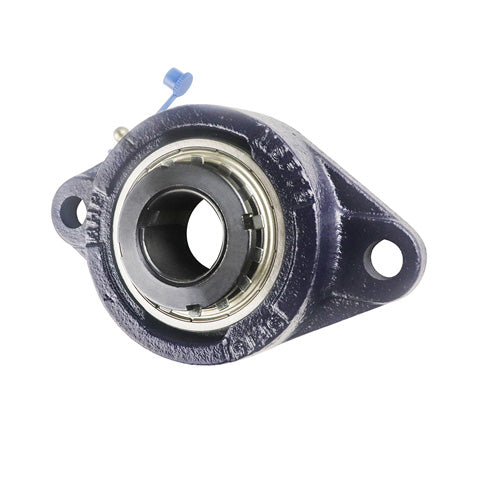

RHP MSFT1035-30K Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
RHP MSFT1035-30K Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
Regular price
CHF 115.00
ex VAT
Regular price
Sale price
CHF 115.00
ex VAT
In stock
Price Break
10+
CHF 90.88
20+
CHF 85.78
30+
CHF 84.75
40+
CHF 83.73
50+
CHF 82.71
75+
CHF 81.69
100+
CHF 76.59
200+
CHF 75.56
250+
CHF 74.54
500+
CHF 73.52
1000+
CHF 71.48
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- MSFT
- Bolt Hole Centres:
- 130mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 95.5mm |
| H | 155.5mm |
| J | 130mm |
| G | 12mm |
| A | 31.4mm |
| A4 | 12.7mm |
| A5 | 40.5mm |
| B5 | 35mm |
| s | -mm |
| d4 | 52mm |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1035K+insonly">1035K Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
