SKU: MSFT2-RHP

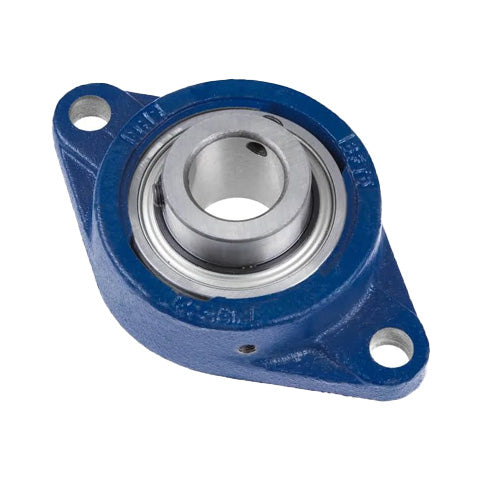

RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
RHP MSFT2 Heavy Duty Two Bolt Oval Cast Iron Flange Housing 2 inch Bore Insert
Regular price
CHF 148.71
ex VAT
Regular price
Sale price
CHF 148.71
ex VAT
In stock
Price Break
10+
CHF 132.35
19+
CHF 124.92
29+
CHF 123.43
39+
CHF 121.94
49+
CHF 120.46
74+
CHF 118.97
99+
CHF 111.53
199+
CHF 110.05
249+
CHF 108.56
499+
CHF 107.07
999+
CHF 104.10
Couldn't load pickup availability
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Style:
- MSFT
- Bolt Hole Centres:
- 183.998mm = 7.244 inch
Technical
Technical
| Bore | 2 inch |
|---|---|
| L | 5 inch |
| H | 8.5 inch |
| J | 7.244 inch |
| G | 0.625 inch |
| A | 1.72 inch |
| A1 | 2.532 inch |
| A4 | 0.689 inch |
| B | 2.187 inch |
| s | 0.877 |
| d1 | 2.709 inch |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 3.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
