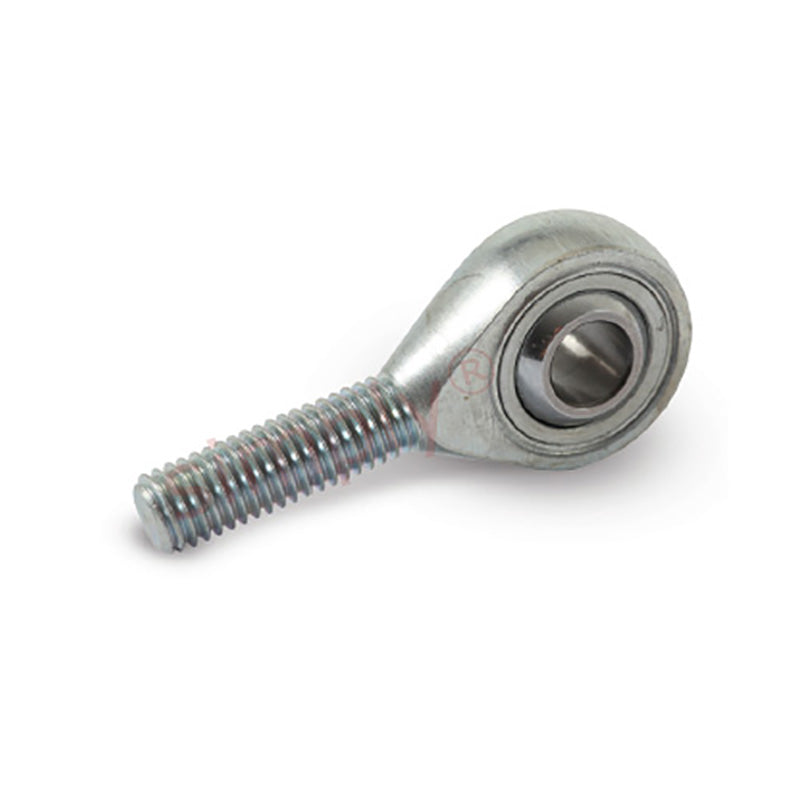

Branded MSL-M16C Left Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days

Name: Branded MSL-M16C Left Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M16x1.5 Thread - Allow 7-10 Days
Brand: Major Brand
SKU: MSL-M16C SS-MB
Price: 17.00 CHF
Availability: InStock

CHF 17.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 13.48

19+ CHF 12.73

29+ CHF 12.57

39+ CHF 12.42

49+ CHF 12.27

74+ CHF 12.12

99+ CHF 11.36

199+ CHF 11.21

249+ CHF 11.06

499+ CHF 10.91

999+ CHF 10.61

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Brand / Quality:: Major Brand - High Quality
Thread Size:: M16x1.5
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 16mm
Material:: PTFE Lined

Technical

Bore size	16mm
Thread	M16x1.5
W	21mm
H	15mm
D	42mm
L1	66mm
L2	40mm
O	19.3mm
Static load	32100 N
