• Branded MSL-M18C Left Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M18x1.5 Thread - Allow 7-10 Days
1 1

SKU: MSL-M18C SS-MB

Branded MSL-M18C Left Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M18x1.5 Thread - Allow 7-10 Days

Branded MSL-M18C Left Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M18x1.5 Thread - Allow 7-10 Days
CHF 61.00 ex VAT
CHF 61.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 48.04
19+ CHF 45.34
29+ CHF 44.80
39+ CHF 44.26
49+ CHF 43.72
74+ CHF 43.18
99+ CHF 40.48
199+ CHF 39.94
249+ CHF 39.40
499+ CHF 38.86
999+ CHF 37.78
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

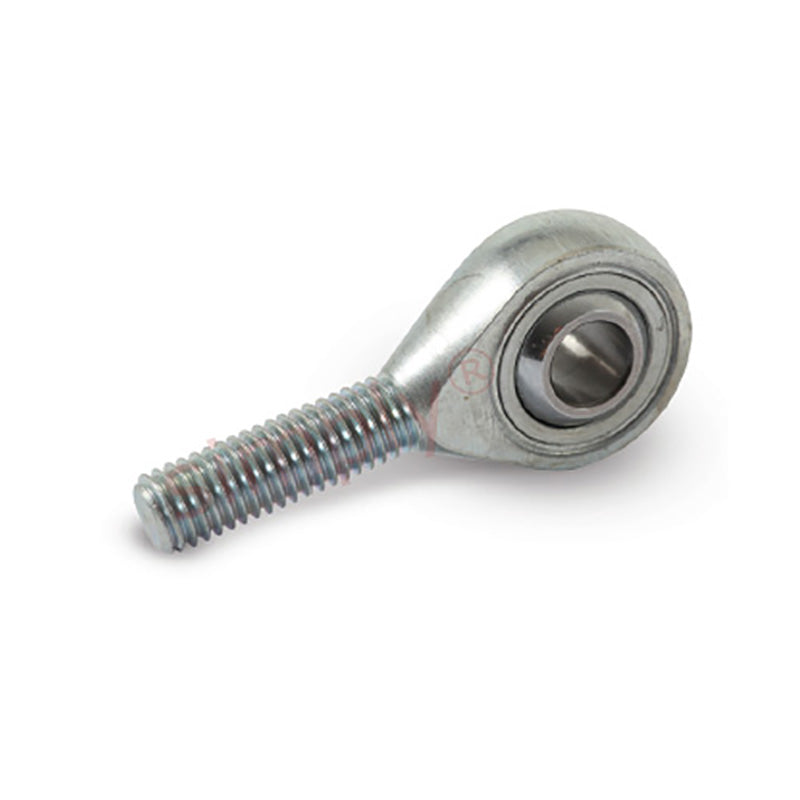

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance
Brand / Quality:
Major Brand - High Quality
Thread Size:
M18x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
18mm
Material:
PTFE Lined
Technical
Bore size 18mm
Thread M18x1.5
W 23mm
H 16.5mm
D 46mm
L1 72mm
L2 44mm
O 21.8mm
Static load 38400 N
