SKU: MST1.1/2-RHP

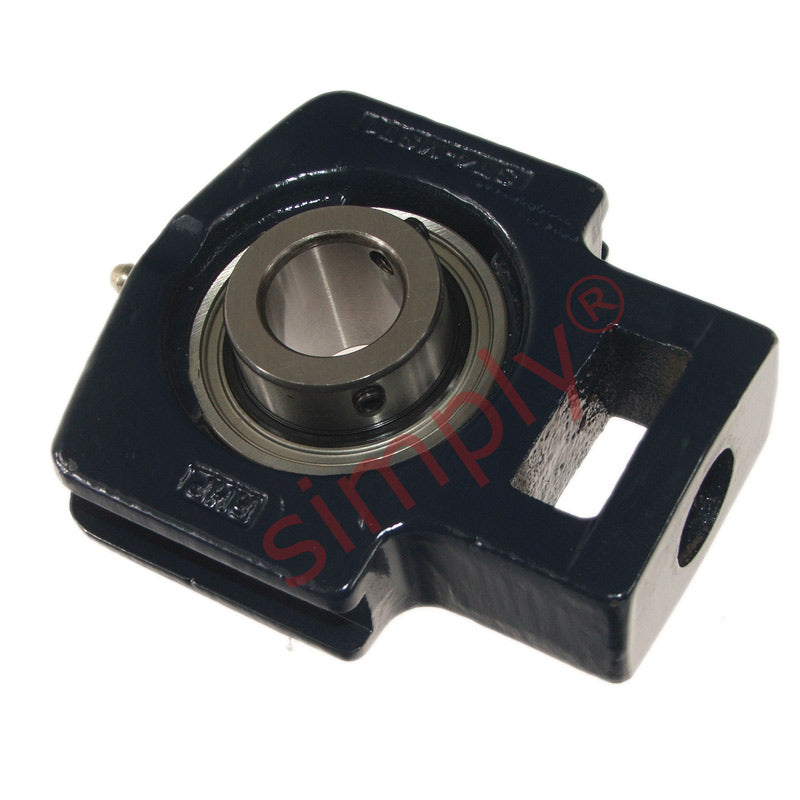

RHP MST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
RHP MST1-1/2 Cast Iron Take Up Unit and 1-1/2 inch Bore Insert
Regular price
CHF 137.00
ex VAT
Regular price
Sale price
CHF 137.00
ex VAT
In stock
Price Break
10+
CHF 108.49
20+
CHF 102.39
30+
CHF 101.18
40+
CHF 99.96
50+
CHF 98.74
75+
CHF 97.52
100+
CHF 91.42
200+
CHF 90.21
250+
CHF 88.99
500+
CHF 87.77
1000+
CHF 85.33
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Style:
- MST
Technical
Technical
| Bore | 1-1/2 inch |
|---|---|
| L | 5.787 inch |
| L1 | 3.512 inch |
| L2 | 0.61 inch |
| L3 | 0.807 inch |
| L4 | 3.209 inch |
| L5 | 1.988 inch |
| H | 4.646 inch |
| H1 | 3.248 inch |
| H2 | 1.949 inch |
| H3 | 3.976 inch |
| N | 1.142 inch |
| A | 1.949 inch |
| A1 | 1.457 inch |
| A2 | 0.689 inch |
| B | 1.938 inch |
| B5 | - inch |
| s | 0.752 inch |
| d1 | 2.256 inch |
| d4 | - inch |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045-1-1/2G+insonly">1045-1-1/2G Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
