SKU: MST1-RHP

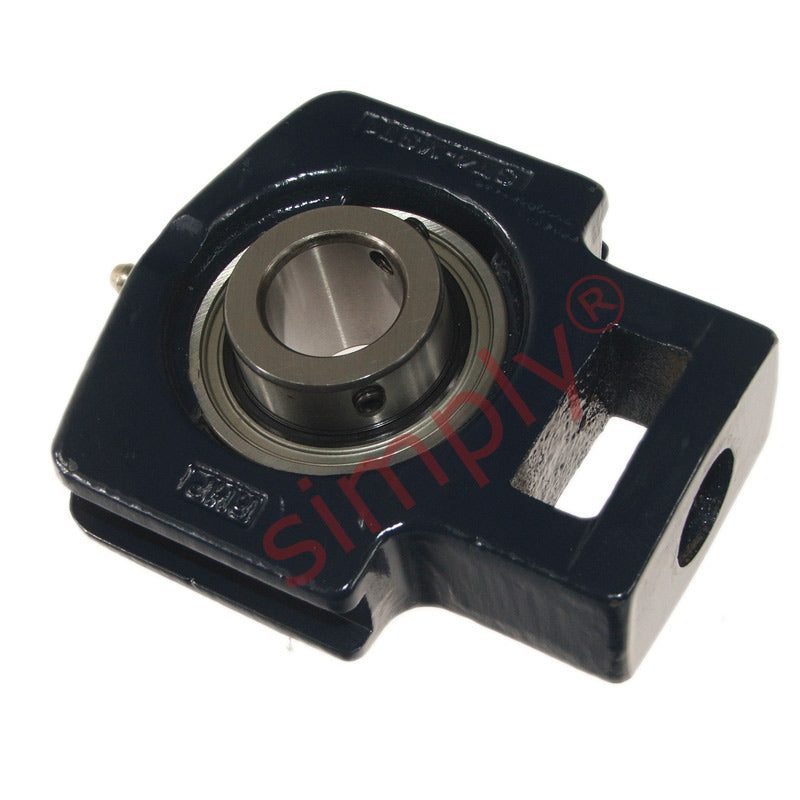

RHP MST1 Cast Iron Take Up Unit and 1 inch Bore Insert
RHP MST1 Cast Iron Take Up Unit and 1 inch Bore Insert
Regular price
CHF 95.04
ex VAT
Regular price
Sale price
CHF 95.04
ex VAT
In stock
Price Break
10+
CHF 84.59
19+
CHF 79.83
29+
CHF 78.88
39+
CHF 77.93
49+
CHF 76.98
74+
CHF 76.03
99+
CHF 71.28
199+
CHF 70.33
249+
CHF 69.38
499+
CHF 68.43
999+
CHF 66.53
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MST
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 4.547 inch |
| L1 | 2.823 inch |
| L2 | 0.492 inch |
| L3 | 0.65 inch |
| L4 | 2.539 inch |
| L5 | 1.693 inch |
| H | 3.996 inch |
| H1 | 2.539 inch |
| H2 | 1.476 inch |
| H3 | 3.504 inch |
| N | 0.886 inch |
| A | 1.437 inch |
| A1 | 1.181 inch |
| A2 | 0.531 inch |
| B | 1.5 inch |
| B5 | - inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| d4 | - inch |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
