SKU: MST1045K-RHP

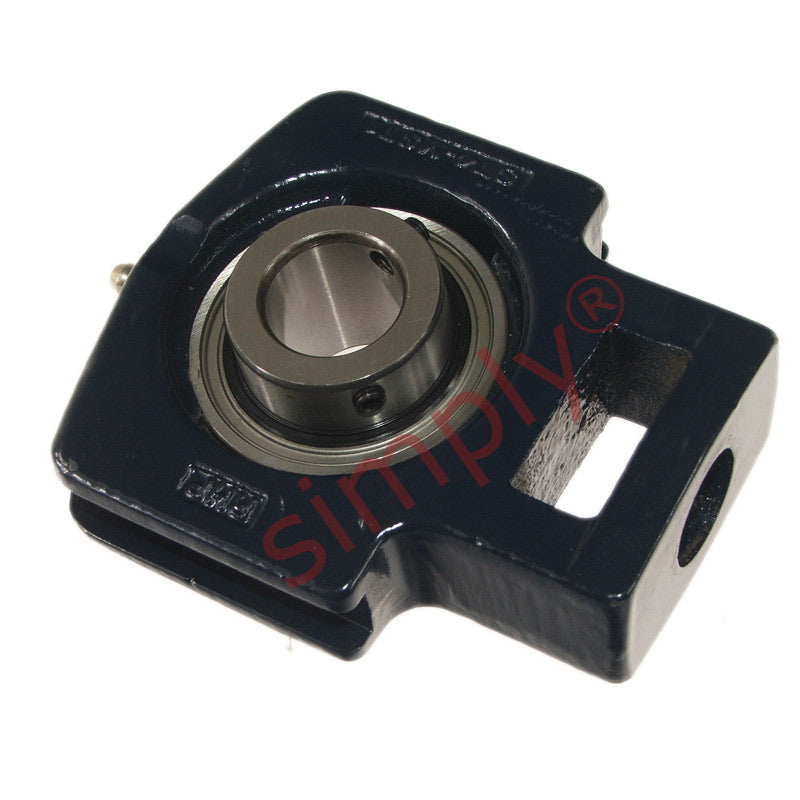

RHP MST1045K Cast Iron Take Up Unit and 40mm Bore Insert
RHP MST1045K Cast Iron Take Up Unit and 40mm Bore Insert
Regular price
CHF 129.00
ex VAT
Regular price
Sale price
CHF 129.00
ex VAT
In stock
Price Break
10+
CHF 102.04
20+
CHF 96.31
30+
CHF 95.16
40+
CHF 94.02
50+
CHF 92.87
75+
CHF 91.72
100+
CHF 85.99
200+
CHF 84.84
250+
CHF 83.70
500+
CHF 82.55
1000+
CHF 80.26
Share this product
Description
Description
|
RHP MST K Series Cast Iron Take Up Housing Units: Take up type cast iron bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 40mm
- Style:
- MST
Technical
Technical

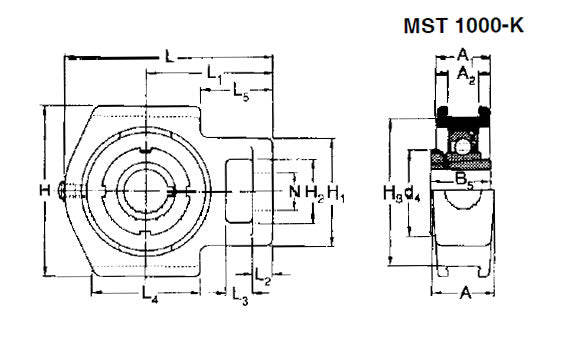

| Bore | 40mm |
|---|---|
| L | 147mm |
| L1 | 89.2mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | -mm |
| B5 | 39mm |
| s | -mm |
| d1 | -mm |
| d4 | 65mm |
| Dynamic load | 32500 N |
| Static load | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1045K+insonly">1045K Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
