SKU: MST1055K-RHP

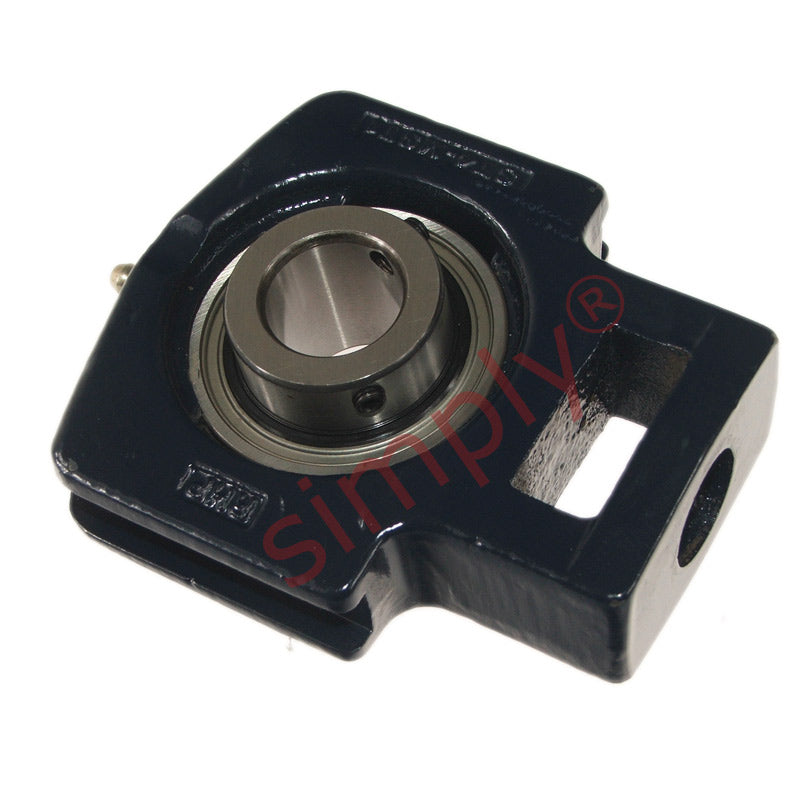

RHP MST1055K Cast Iron Take Up Unit and 50mm Bore Insert
RHP MST1055K Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
In stock
Price Break
10+
CHF 130.67
20+
CHF 123.33
30+
CHF 121.86
40+
CHF 120.40
50+
CHF 118.93
75+
CHF 117.46
100+
CHF 110.12
200+
CHF 108.65
250+
CHF 107.18
500+
CHF 105.71
1000+
CHF 102.78
Share this product
Description
Description
|
RHP MST K Series Cast Iron Take Up Housing Units: Take up type cast iron bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | -mm |
| B5 | 45mm |
| s | -mm |
| d1 | -mm |
| d4 | 75mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055K+insonly">1055K Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
