SKU: MST2.11/16-RHP

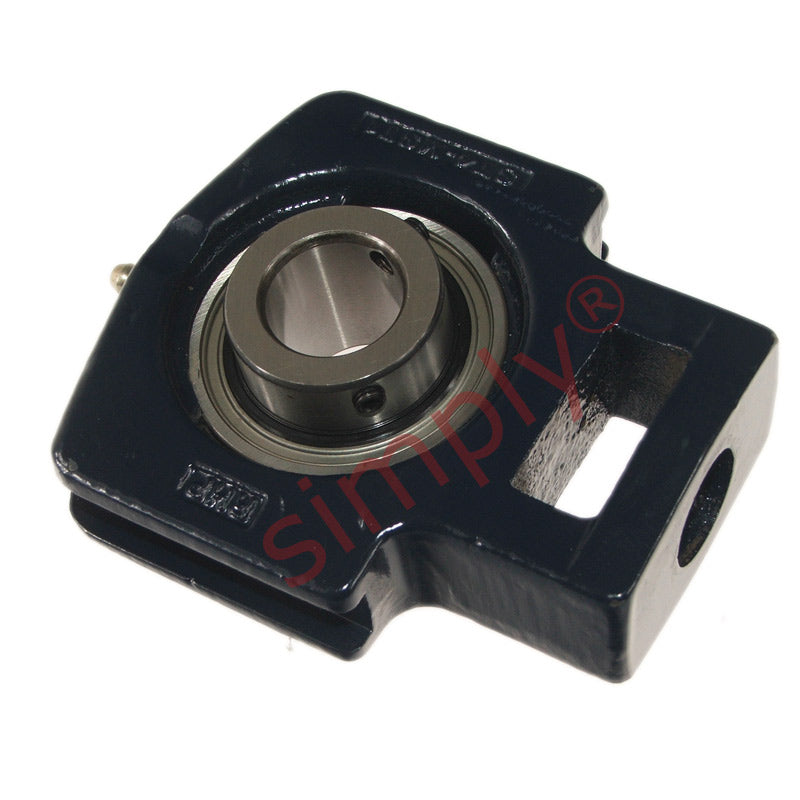

RHP MST2-11/16 Cast Iron Take Up Unit and 2-11/16 inch Bore Insert

RHP MST2-11/16 Cast Iron Take Up Unit and 2-11/16 inch Bore Insert
Regular price CHF 389.00 ex VAT
Regular price Sale price CHF 389.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 309.08
20+ CHF 291.72
30+ CHF 288.25
40+ CHF 284.77
50+ CHF 281.30
75+ CHF 277.83
100+ CHF 260.46
200+ CHF 256.99
250+ CHF 253.52
500+ CHF 250.04
1000+ CHF 243.10
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 2-11/16 inch
L 8.76 inch
L1 5.413 inch
L2 0.846 inch
L3 1.26 inch
L4 4.744 inch
L5 3.031 inch
H 6.555 inch
H1 4.449 inch
H2 2.756 inch
H3 5.937 inch
N 1.654 inch
A 2.756 inch
A1 1.988 inch
A2 1.063 inch
B 3.062 inch
B5 - inch
s 1.314 inch
d1 3.622 inch
d4 - inch
Dynamic load 66000 N
Static load 49500 N
Rec max speed 2300 rpm
Weight 8.4 kg
Insert <a href="advanced_search_result.php?keywords=1075-2-11/16G+insonly">1075-2-11/16G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
