SKU: MST25-RHP

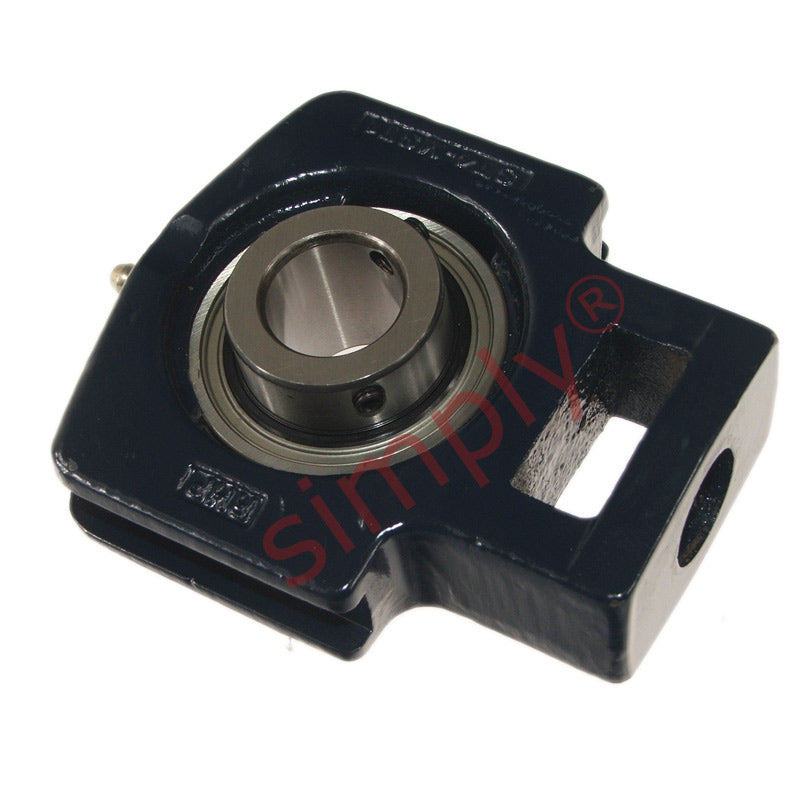

RHP MST25 Cast Iron Take Up Unit and 25mm Bore Insert
RHP MST25 Cast Iron Take Up Unit and 25mm Bore Insert
Regular price
CHF 89.57
ex VAT
Regular price
Sale price
CHF 89.57
ex VAT
In stock
Price Break
10+
CHF 79.72
19+
CHF 75.24
29+
CHF 74.34
39+
CHF 73.45
49+
CHF 72.55
74+
CHF 71.66
99+
CHF 67.18
199+
CHF 66.28
249+
CHF 65.39
499+
CHF 64.49
999+
CHF 62.70
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MST
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 115.5mm |
| L1 | 71.7mm |
| L2 | 12.5mm |
| L3 | 16.5mm |
| L4 | 64.5mm |
| L5 | 43mm |
| H | 101.5mm |
| H1 | 64.5mm |
| H2 | 37.5mm |
| H3 | 89mm |
| N | 22.5mm |
| A | 36.5mm |
| A1 | 30mm |
| A2 | 13.5mm |
| B | 38.1mm |
| B5 | -mm |
| s | 15.93mm |
| d1 | 40mm |
| d4 | -mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-25G+insonly">1030-25G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
