SKU: MST3-RHP

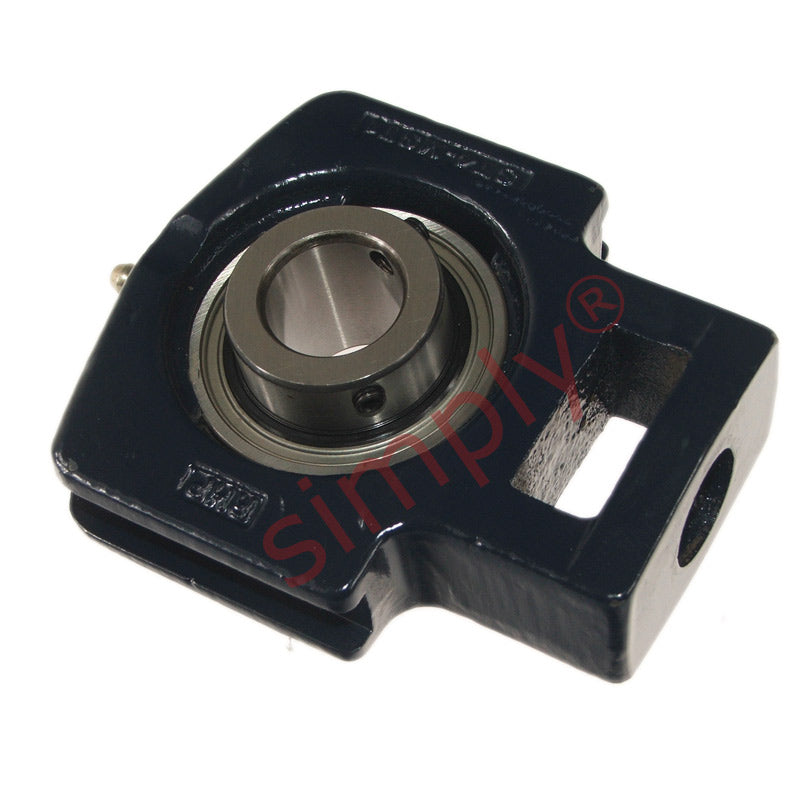

RHP MST3 Cast Iron Take Up Unit and 3 inch Bore Insert

RHP MST3 Cast Iron Take Up Unit and 3 inch Bore Insert
Regular price CHF 442.00 ex VAT
Regular price Sale price CHF 442.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 351.97
20+ CHF 332.19
30+ CHF 328.24
40+ CHF 324.28
50+ CHF 320.33
75+ CHF 316.38
100+ CHF 296.60
200+ CHF 292.65
250+ CHF 288.69
500+ CHF 284.74
1000+ CHF 276.83
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3 inch
L 9.114 inch
L1 5.492 inch
L2 0.807 inch
L3 1.26 inch
L4 4.921 inch
L5 2.913 inch
H 7.244 inch
H1 4.449 inch
H2 2.756 inch
H3 6.5 inch
N 1.654 inch
A 2.756 inch
A1 2.126 inch
A2 1.063 inch
B 3.25 inch
B5 - inch
s 1.314 inch
d1 3.878 inch
d4 - inch
Dynamic load 71500 N
Static load 54500 N
Rec max speed 2150 rpm
Weight 9 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 10
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
