SKU: MST45-RHP

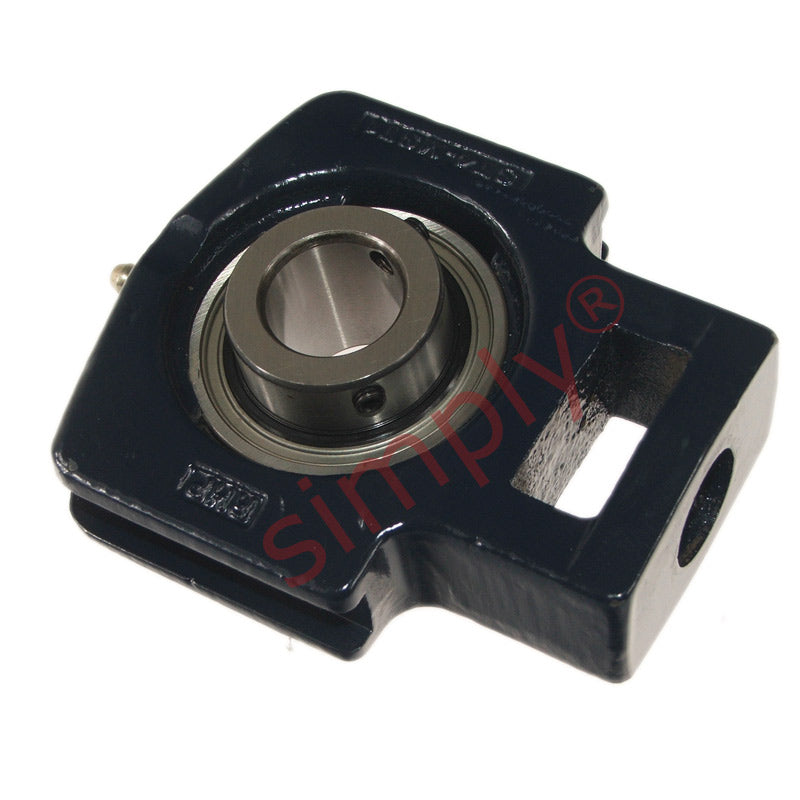

RHP MST45 Cast Iron Take Up Unit and 45mm Bore Insert
RHP MST45 Cast Iron Take Up Unit and 45mm Bore Insert
Regular price
CHF 150.00
ex VAT
Regular price
Sale price
CHF 150.00
ex VAT
In stock
Price Break
10+
CHF 118.73
20+
CHF 112.06
30+
CHF 110.73
40+
CHF 109.39
50+
CHF 108.06
75+
CHF 106.73
100+
CHF 100.05
200+
CHF 98.72
250+
CHF 97.39
500+
CHF 96.05
1000+
CHF 93.38
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- MST
Technical
Technical
| Bore | 45mm |
|---|---|
| L | 151mm |
| L1 | 90.5mm |
| L2 | 15.5mm |
| L3 | 20.5mm |
| L4 | 81.5mm |
| L5 | 50.5mm |
| H | 118mm |
| H1 | 82.5mm |
| H2 | 49.5mm |
| H3 | 101mm |
| N | 29mm |
| A | 49.5mm |
| A1 | 37mm |
| A2 | 17.5mm |
| B | 51.59mm |
| B5 | -mm |
| s | 19.1mm |
| d1 | 62.2mm |
| d4 | -mm |
| Dynamic load | 35000 N |
| Static load | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 2.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1050-45G+insonly">1050-45G Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
