SKU: MST50-RHP

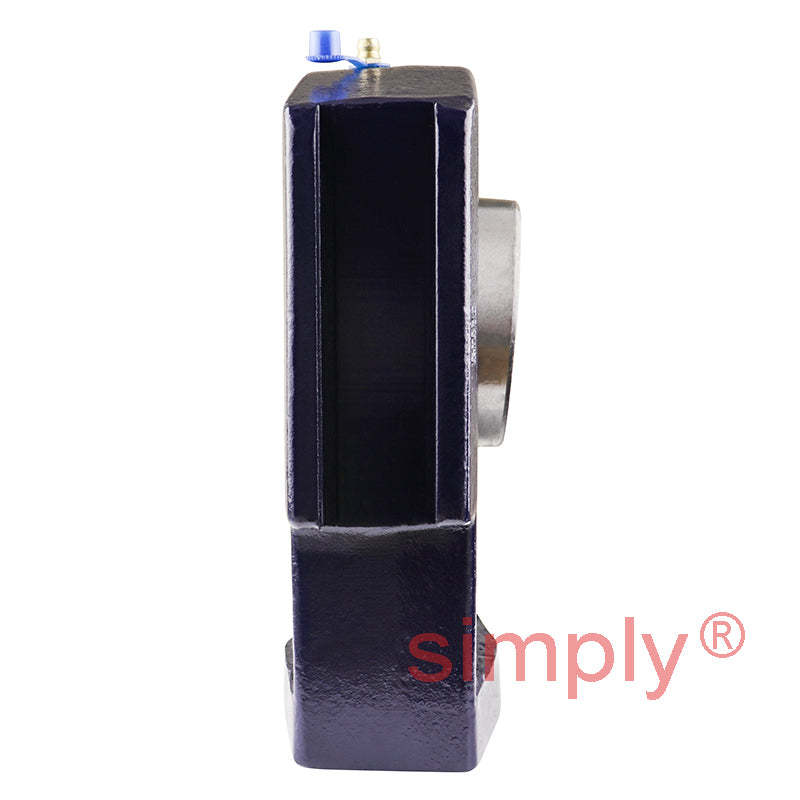

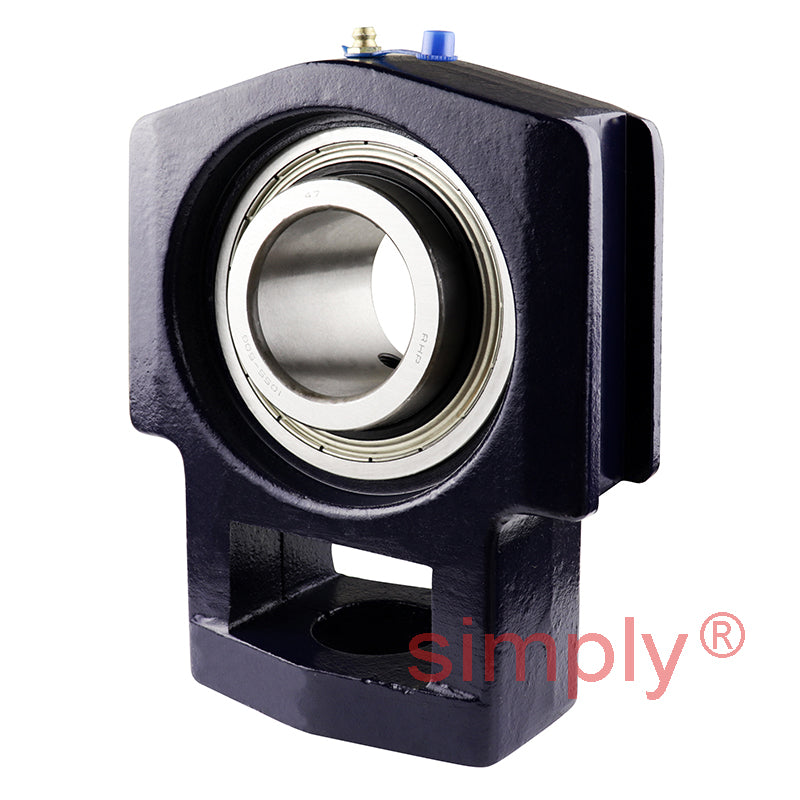

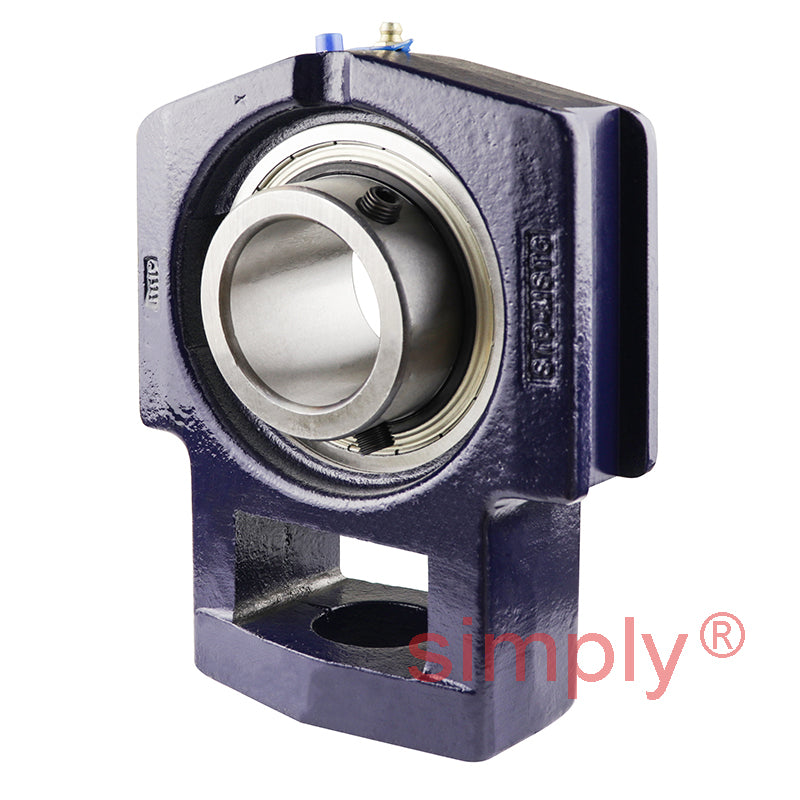

RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert
RHP MST50 Cast Iron Take Up Unit and 50mm Bore Insert
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
In stock
Price Break
10+
CHF 130.67
20+
CHF 123.33
30+
CHF 121.86
40+
CHF 120.40
50+
CHF 118.93
75+
CHF 117.46
100+
CHF 110.12
200+
CHF 108.65
250+
CHF 107.18
500+
CHF 105.71
1000+
CHF 102.78
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- MST
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 55.55mm |
| B5 | -mm |
| s | 22.28mm |
| d1 | 68.81mm |
| d4 | -mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-50G+insonly">1055-50G Click Here</a> |
| Casting group | 6 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
