SKU: MST55-RHP

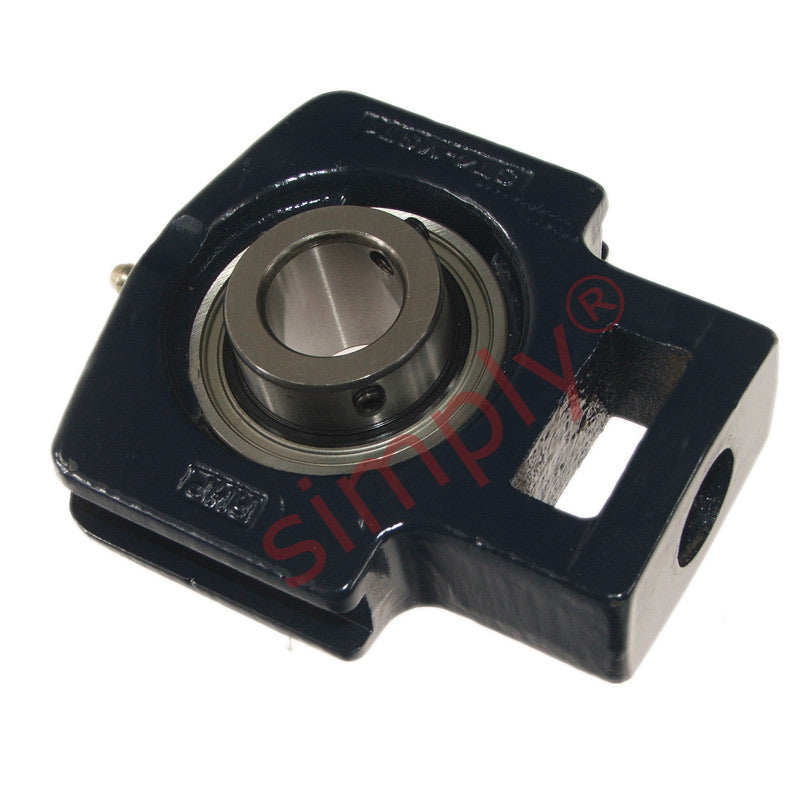

RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
RHP MST55 Cast Iron Take Up Unit and 55mm Bore Insert
Regular price
CHF 210.95
ex VAT
Regular price
Sale price
CHF 210.95
ex VAT
In stock
Price Break
10+
CHF 187.75
19+
CHF 177.20
29+
CHF 175.09
39+
CHF 172.98
49+
CHF 170.87
74+
CHF 168.76
99+
CHF 158.21
199+
CHF 156.10
249+
CHF 153.99
499+
CHF 151.88
999+
CHF 147.67
Couldn't load pickup availability
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- MST
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 192mm |
| L1 | 119mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 65.07mm |
| B5 | -mm |
| s | 25.45mm |
| d1 | 73.34mm |
| d4 | -mm |
| Dynamic load | 48000 N |
| Static load | 33000 N |
| Rec max speed | 2800 rpm |
| Weight | 5.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-55G+insonly">1060-55G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
