SKU: MST80-RHP
RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
RHP MST80 Cast Iron Take Up Unit and 80mm Bore Insert
Regular price
CHF 651.00
ex VAT
Regular price
Sale price
CHF 651.00
ex VAT
In stock
Price Break
10+
CHF 518.09
20+
CHF 488.98
30+
CHF 483.16
40+
CHF 477.34
50+
CHF 471.52
75+
CHF 465.70
100+
CHF 436.59
200+
CHF 430.77
250+
CHF 424.95
500+
CHF 419.13
1000+
CHF 407.49
Share this product
Description
Description
|
RHP MST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 80mm
- Style:
- MST

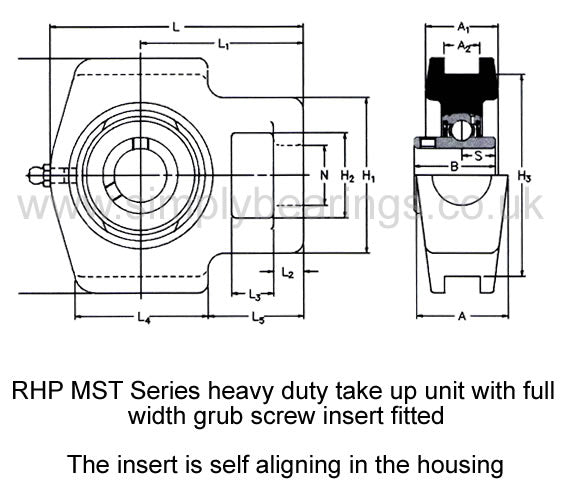

Technical
Technical
| Bore | 80mm |
|---|---|
| L | 260.5mm |
| L1 | 162mm |
| L2 | 28.5mm |
| L3 | 38mm |
| L4 | 140mm |
| L5 | 90.5mm |
| H | 198.5mm |
| H1 | 124mm |
| H2 | 73mm |
| H3 | 173mm |
| N | 47.5mm |
| A | 79.5mm |
| A1 | 68.5mm |
| A2 | 46.05mm |
| B | 85.72mm |
| B5 | -mm |
| s | 34.18mm |
| d1 | 106.02mm |
| d4 | -mm |
| Dynamic load | 83000 N |
| Static load | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 13.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-80G+insonly">1085-80G Click Here</a> |
| Casting group | 11 |
| Grease nipple thread | 1/4 UNF, 1/4mm x 28 TPI |
