SKU: MUCFBL205-16-SNR

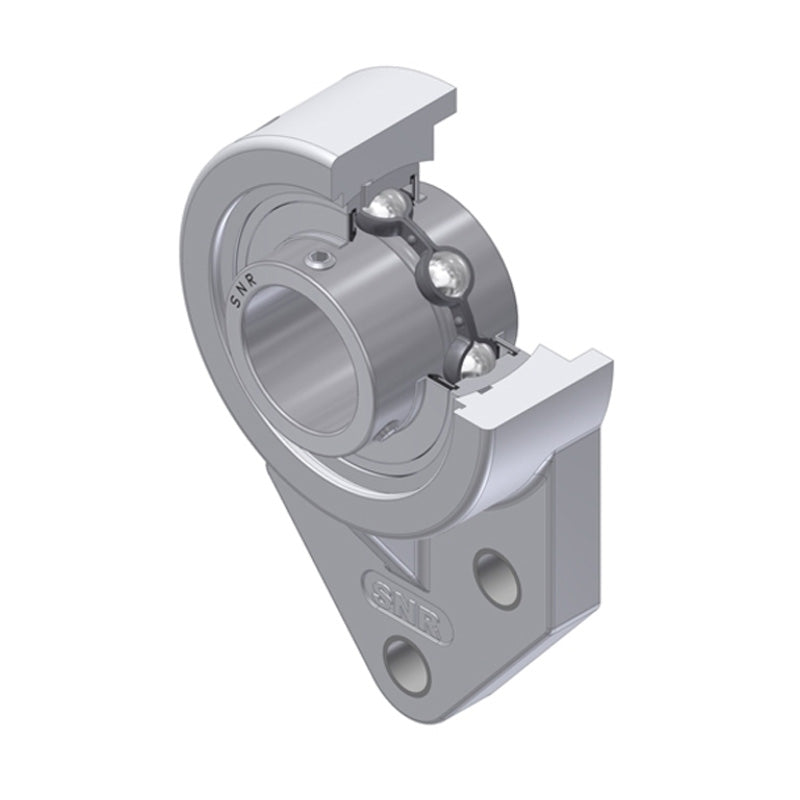

SNR MUCFBL205-16 Imperial Thermoplastic Three Bolt Flanged Bracket Housing Unit with 1 inch Bore Insert - Allow 2-3 Days

SNR MUCFBL205-16 Imperial Thermoplastic Three Bolt Flanged Bracket Housing Unit with 1 inch Bore Insert - Allow 2-3 Days
Regular price CHF 99.00 ex VAT
Regular price Sale price CHF 99.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 87.79
4+ CHF 84.25
9+ CHF 82.47
19+ CHF 79.81
49+ CHF 78.04
99+ CHF 73.60
499+ CHF 62.08
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1 inch
A - Housing height 34mm
A1 - Housing foot height / flange height 11.4mm
A2 - Total height from mounting surface 41.6mm
B - Width of Inner Ring 34.1mm
d - Shaft diameter 25.4mm
e - Distance mounting surface to bearing centre 21.8mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 120.6mm
H1 - Distance housing side to centre of bearing insert 85.7mm
J - Mounting holes distance 41.3mm
J3 - Distance mounting hole to bearing centre 46mm
J4 - Mounting hole distance 28.6mm
L - Housing width / diameter 70mm
L2 - Housing flange width 63.5mm
N - Mounting hole dimension 10.7mm
S - Distance front side/bearing centre 14.3mm
C - Dynamic load rating 11.9 kN
C0 - Static load rating 6.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.291kg
Recommended tightening torque for set screw 3.9 Nm
