SKU: MUCFBL205-SNR

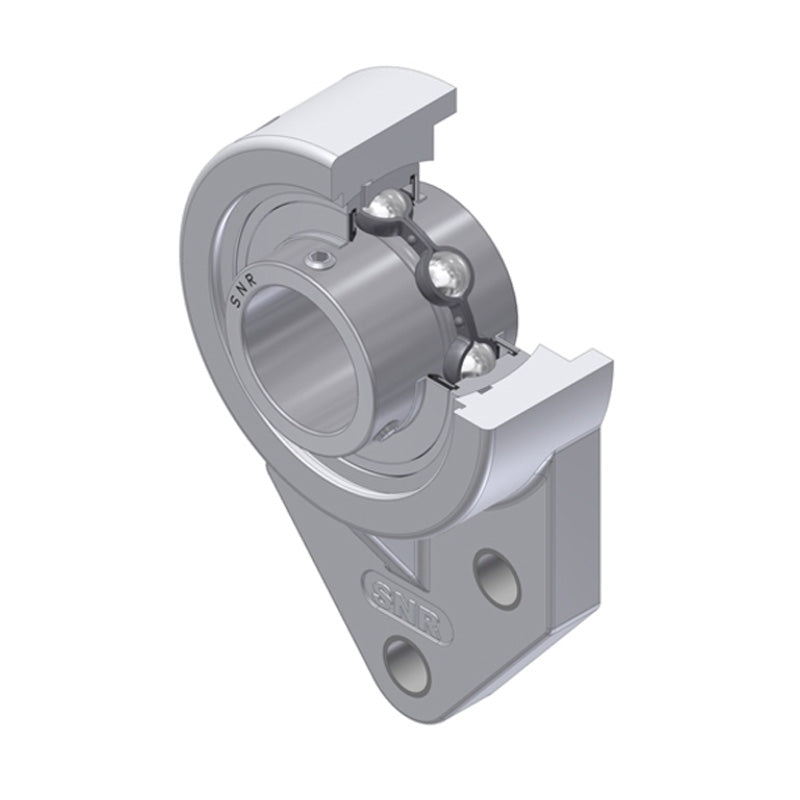

SNR MUCFBL205 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
SNR MUCFBL205 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 25mm Bore Insert - Allow 2-3 Days
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 76.73
4+
CHF 73.63
9+
CHF 72.08
19+
CHF 69.76
49+
CHF 68.21
99+
CHF 64.33
499+
CHF 54.26
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
SNR MUCFBL200 Three Bolt Bracket Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 25mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFBL
- Colour:
- White
- Bolt Hole Centres:
- 41.3mm
Technical
Technical
| Bore | 25mm |
|---|---|
| A - Housing height | 34mm |
| A1 - Housing foot height / flange height | 11.4mm |
| A2 - Total height from mounting surface | 41.6mm |
| B - Width of Inner Ring | 34.1mm |
| d - Shaft diameter | 25mm |
| e - Distance mounting surface to bearing centre | 21.8mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 120.6mm |
| H1 - Distance housing side to centre of bearing insert | 85.7mm |
| J - Mounting holes distance | 41.3mm |
| J3 - Distance mounting hole to bearing centre | 46mm |
| J4 - Mounting hole distance | 28.6mm |
| L - Housing width / diameter | 70mm |
| L2 - Housing flange width | 63.5mm |
| N - Mounting hole dimension | 10.7mm |
| S - Distance front side/bearing centre | 14.3mm |
| C - Dynamic load rating | 11.9 kN |
| C0 - Static load rating | 6.3 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.3kg |
| Recommended tightening torque for set screw | 3.9 Nm |
