SKU: MUCFBL206-SNR

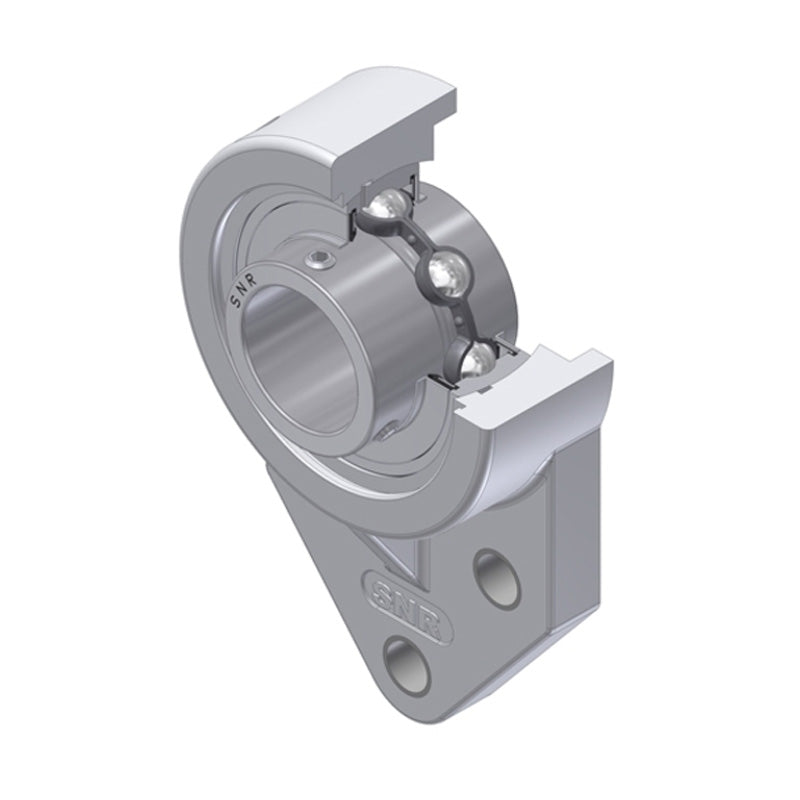

SNR MUCFBL206 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
SNR MUCFBL206 Metric Thermoplastic Three Bolt Flanged Bracket Housing Unit with 30mm Bore Insert - Allow 2-3 Days
Regular price
CHF 87.00
ex VAT
Regular price
Sale price
CHF 87.00
ex VAT
In stock
Price Break
3+
CHF 76.75
4+
CHF 73.65
9+
CHF 72.10
19+
CHF 69.78
49+
CHF 68.23
99+
CHF 64.35
499+
CHF 54.27
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Description
Description
SNR MUCFBL200 Three Bolt Bracket Thermoplastic Housing Unit: This housing is designed for durability in demanding environments. With a sturdy thermoplastic housing and a stainless steel insert ball bearing secured by socket set screws, this unit ensures reliable performance. Its innovative seal with slinger protects against contaminants, while the food-grade grease makes it ideal for food processing applications. Experience exceptional strength and reliability with this versatile housing unit.
Benefits: Durability, food-safe design, easy maintenance
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 30mm
- Temperature Range:
- -20 to 100 deg C
- Style:
- MUCFBL
- Colour:
- White
- Bolt Hole Centres:
- 47.6mm
Technical
Technical
| Bore | 30mm |
|---|---|
| A - Housing height | 32mm |
| A1 - Housing foot height / flange height | 13.3mm |
| A2 - Total height from mounting surface | 41.5mm |
| B - Width of Inner Ring | 38.1mm |
| d - Shaft diameter | 30mm |
| e - Distance mounting surface to bearing centre | 19.3mm |
| G - Grease fitting | 1/4-28 inch |
| H - Housing length, width or diameter | 135.5mm |
| H1 - Distance housing side to centre of bearing insert | 96.5mm |
| J - Mounting holes distance | 47.6mm |
| J3 - Distance mounting hole to bearing centre | 52.4mm |
| J4 - Mounting hole distance | 31.8mm |
| L - Housing width / diameter | 83mm |
| L2 - Housing flange width | 76mm |
| N - Mounting hole dimension | 10.7mm |
| S - Distance front side/bearing centre | 15.9mm |
| C - Dynamic load rating | 16.7 kN |
| C0 - Static load rating | 9 kN |
| Operating temperature min. | -20 Deg C |
| Operating temperature max. | 100 Deg C |
| Mass | 0.49kg |
| Recommended tightening torque for set screw | 3.9 Nm |
