SKU: MUCNFL208-24-SNR

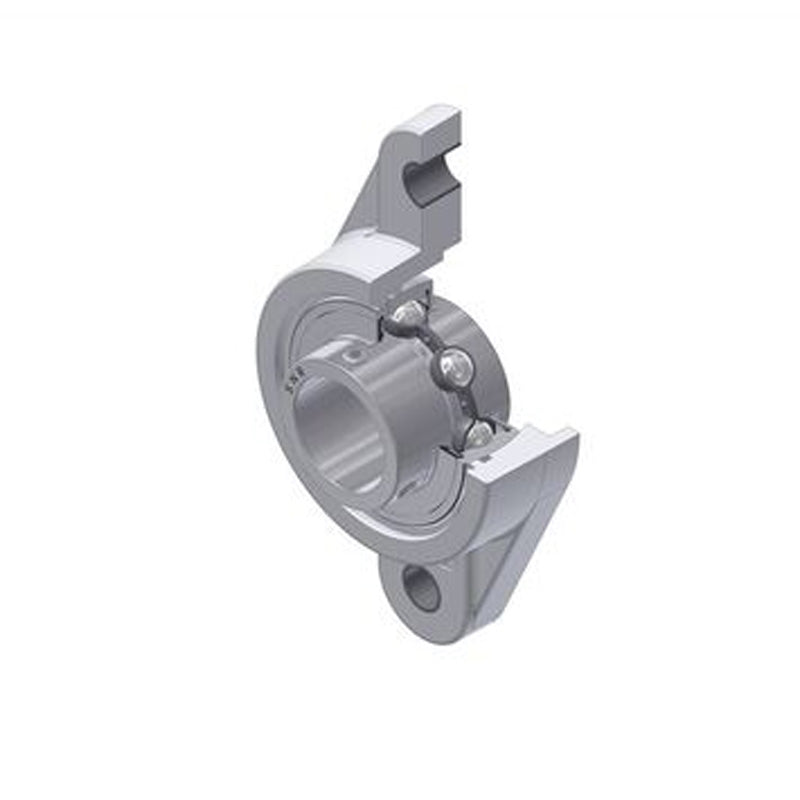

SNR MUCNFL208-24 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/2 inch Bore Insert - Allow 2-3 Days

SNR MUCNFL208-24 Imperial Thermoplastic Two Bolt Oval Flanged Bracket Housing Unit with 1-1/2 inch Bore Insert - Allow 2-3 Days
Regular price CHF 124.00 ex VAT
Regular price Sale price CHF 124.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 109.71
4+ CHF 105.28
9+ CHF 103.06
19+ CHF 99.74
49+ CHF 97.52
99+ CHF 91.98
499+ CHF 77.57
999+ CHF 0.00
1999+ CHF 0.00
2999+ CHF 0.00
4999+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 1-1/2 inch
A - Housing height 37.5mm
A1 - Housing foot height / flange height 20mm
A2 - Total height from mounting surface 51.7mm
B - Width of Inner Ring 49.2mm
d - Shaft diameter 38.1mm
e - Distance mounting surface to bearing centre 21.5mm
G - Grease fitting 1/4-28 inch
H - Housing length, width or diameter 175mm
J - Mounting holes distance 144mm
L - Housing width / diameter 100mm
N - Mounting hole dimension 14mm
S - Distance front side/bearing centre 19mm
C - Dynamic load rating 14.3 kN
C0 - Static load rating 14.3 kN
Operating temperature min. -20 Deg C
Operating temperature max. 100 Deg C
Mass 0.871kg
Recommended tightening torque for set screw 8.3 Nm
