SKU: MUCP204FD

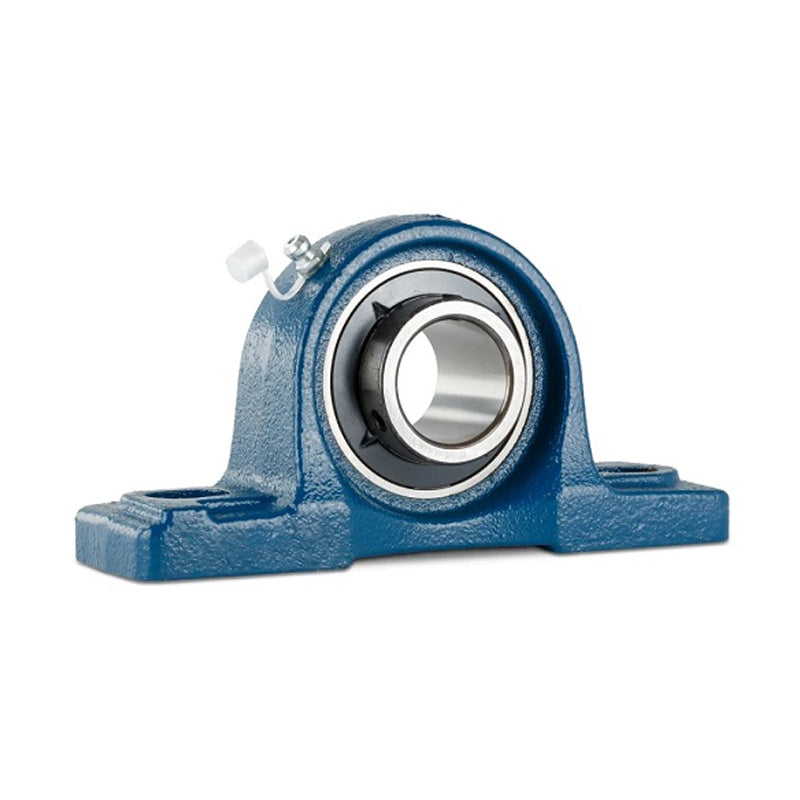

Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
Asahi MUCP204FD Stainless Steel Two Bolt Pillow / Plummer Block Housing with 20mm Bore Stainless Insert with Food Safe Grease
Regular price
CHF 94.00
ex VAT
Regular price
Sale price
CHF 94.00
ex VAT
In stock
Price Break
10+
CHF 74.76
19+
CHF 70.56
29+
CHF 69.72
39+
CHF 68.88
49+
CHF 68.04
74+
CHF 67.20
99+
CHF 63.00
199+
CHF 62.16
249+
CHF 61.32
499+
CHF 60.48
999+
CHF 58.80
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Note: The insert bearing supplied with this housing is prefilled with food compatible grease.
- Brand / Quality:
- Asahi - High Quality
- Inside Diameter:
- 20mm
- Bolt Hole Centres:
- 95mm
Technical
Technical

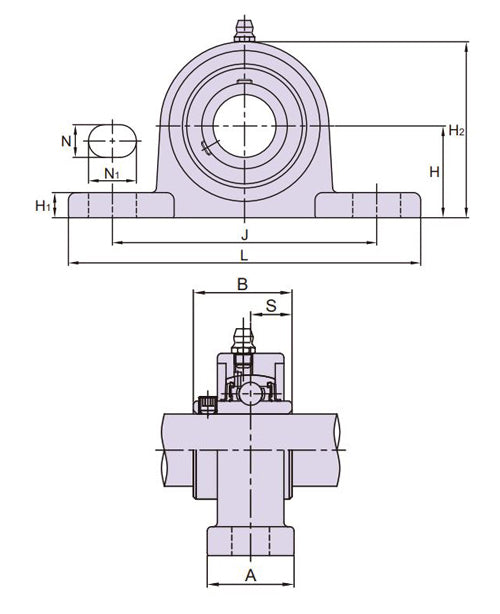

| d | 20mm |
|---|---|
| H | 33.3mm |
| L | 127mm |
| A | 30mm |
| J | 95mm |
| N | 13mm |
| N1 | 19mm |
| H1 | 11mm |
| H2 | 65mm |
| B | 31mm |
| S | 12.7mm |
| Bolt Size | M10 |
| Basic Dynamic Load Rating | 10.9 kN |
| Basic Static Load Rating | 5.3 kN |
