SKU: N1300-131SS

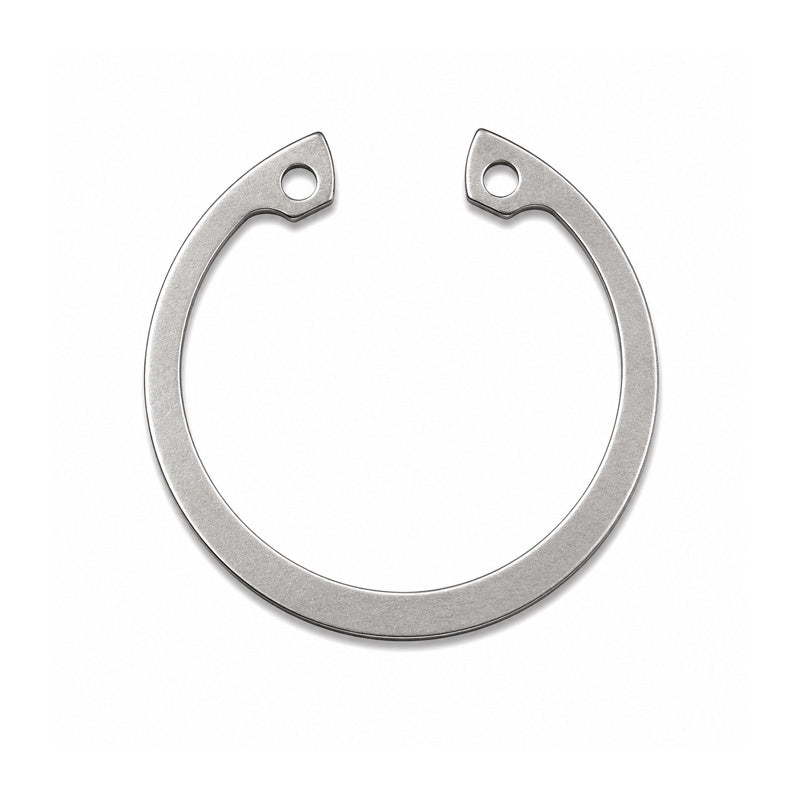

Stainless Steel Internal Circlip for 1.31 inch Bore Diameter Un-Sprung Diameter 1.456 inch
Stainless Steel Internal Circlip for 1.31 inch Bore Diameter Un-Sprung Diameter 1.456 inch
Regular price
CHF 4.00
ex VAT
Regular price
Sale price
CHF 4.00
ex VAT
Equivalent to: N1300-131SS
In stock
Price Break
5+
CHF 2.00
10+
CHF 1.72
20+
CHF 1.57
50+
CHF 1.43
100+
CHF 1.14
500+
CHF 1.00
1000+
CHF 0.86
Description
Description
|
Stainless Steel Imperial Internal Circlips: The most common form of axially fitted circlips for bores with grooves. The circlip has a large free diameter and gap width, consequently it fits more tightly into the groove and provides higher and more uniform thrust load capacity. Lugs with holes are provided for rapid fitting or removal with circlip pliers. Material: Stainless Spring Steel Benefits: Cost effective replacement, durable, removable, corrosion resistant |
Equivalent: N1300-131SS
- Brand / Quality:
- Simply Circlips - Economy Quality
- Bore:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 36.98mm = 1.456 inch
- Material:
- Stainless Steel
- Thickness:
- 1.27mm = 0.05 inch
- Groove Diameter:
- 35.46mm = 1.396 inch
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Bore Size (B) | 1.312 inch |
| Ring Thickness (t) | 0.05 inch |
| Thickness tolerance (t) | 0.05 inch |
| Unstressed diameter (D) | 1.456 inch |
| Unstressed diameter tolerance (D) | +0.025 / -0.020 inch |
| Lug (L) | 0.185 inch |
| Beam (b) | 0.130 inch |
| h | 0.076 inch |
| --- | Groove Requirements |
| Groove diameter (G) | 1.396 inch |
| Groove tolerance (G) | 0.004 inch |
| Minimum Groove Width (W) | 0.056 inch |
| Groove Width Tolerance (W) | +0.004 / -0.000 inch |
| Groove depth (d) | 0.042 inch |
