SKU: N1800-043

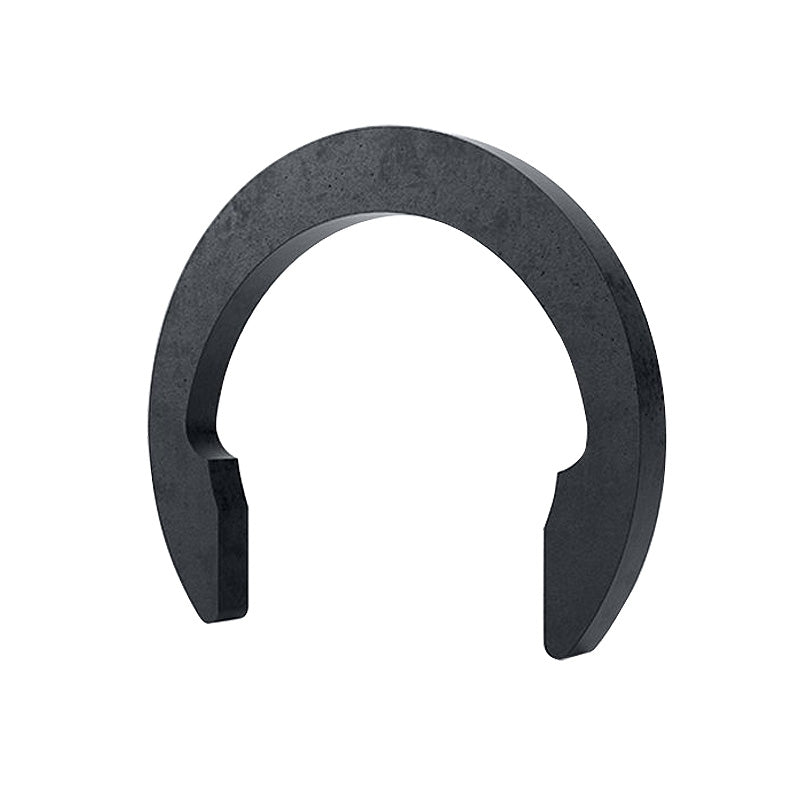

N1800-043 Imperial Crescent Ring for 7/16 inch Diameter Shafts
N1800-043 Imperial Crescent Ring for 7/16 inch Diameter Shafts
Regular price
CHF 1.00
ex VAT
Regular price
Sale price
CHF 1.00
ex VAT
Equivalent to: N1800-043
In stock
Price Break
10+
CHF 0.43
20+
CHF 0.29
50+
CHF 0.18
100+
CHF 0.11
500+
CHF 0.04
1000+
CHF 0.03
Description
Description
Crescent Rings: These crescent rings are an alternative clip style, similar to standard style circlips.
The advantage of using these crescent rings is that they provide greater clearance around the outside diameter as they do not have lugs.
Benefits: Cost effective replacement, durable, removable.
Equivalent: N1800-043
- Brand / Quality:
- Simply Crescent Rings - Economy Quality
- Shaft Size:
- 11.11mm = 0.437 (7/16) inch
- Thickness:
- 0.64mm = 0.025 inch
Technical
Technical
| Shaft Size (S) | 0.4375 inch = 7/16 inch |
|---|---|
| Shaft Tolerance | -0.004 to +0.000 inch |
| Thickness (t) | 0.025 inch |
| Thickness Tolerance | +.002 inch |
| Free Diameter (D) | 0.386 inch |
| Free Diameter Tolerance | +0.003 to -0.005 inch |
| Circlip in Groove | 0.53 inch |
