SKU: N206ECP-SKF

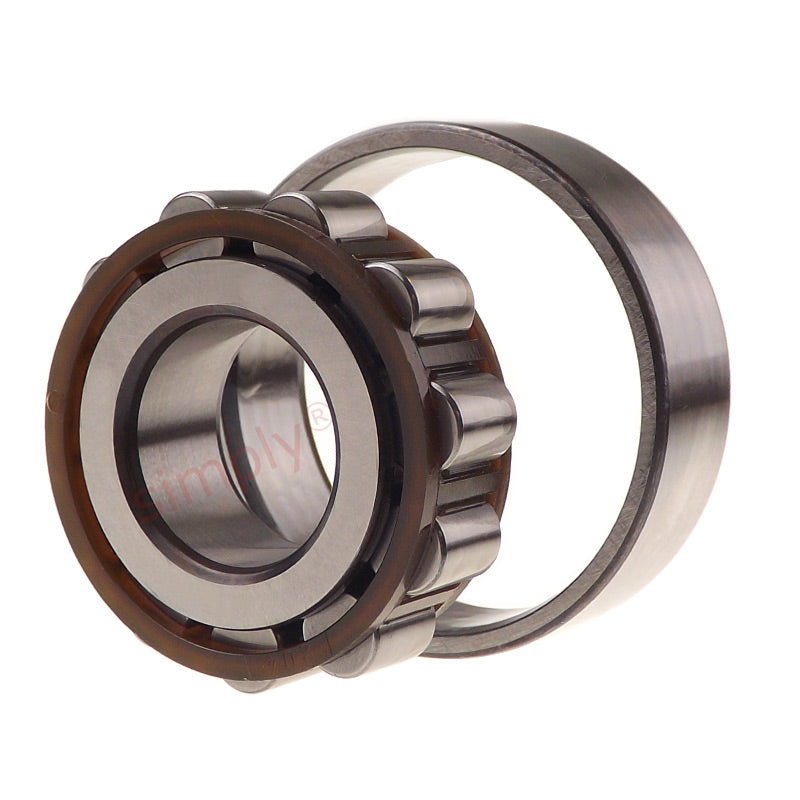

SKF N206ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x16mm
SKF N206ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x62x16mm
Regular price
CHF 93.22
ex VAT
Regular price
Sale price
CHF 93.22
ex VAT
In stock
Price Break
10+
CHF 82.97
19+
CHF 78.30
29+
CHF 77.37
39+
CHF 76.44
49+
CHF 75.51
74+
CHF 74.58
99+
CHF 69.92
199+
CHF 68.98
249+
CHF 68.05
499+
CHF 67.12
999+
CHF 65.25
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| Dynamic load C | 44 kN |
| Static load Co | 36.5 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.2 kg |
| d1 | 41.2mm |
| F,E | 55.5mm |
| r1r2 min | 1mm |
| r3r4 min | 0.6mm |
| S | 1.3mm |
| da min | 35.6mm |
| da max | 54mm |
| db | 57mm |
| Da max | 57.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
