SKU: N207ECP-SKF

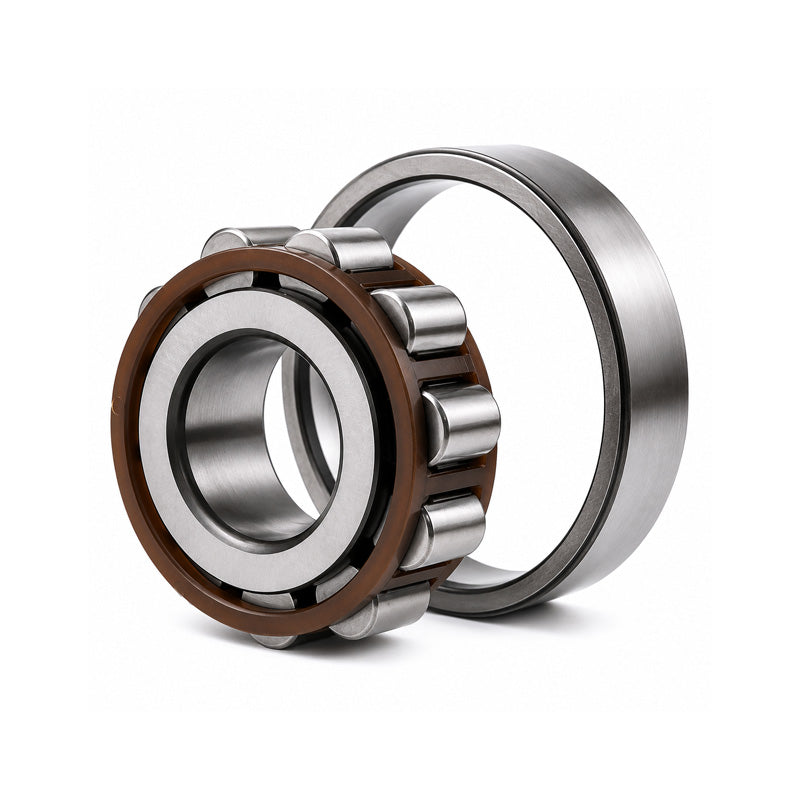

SKF N207ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 35x72x17mm
SKF N207ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 35x72x17mm
Regular price
CHF 71.00
ex VAT
Regular price
Sale price
CHF 71.00
ex VAT
In stock
Price Break
10+
CHF 56.61
19+
CHF 53.43
29+
CHF 52.80
39+
CHF 52.16
49+
CHF 51.52
74+
CHF 50.89
99+
CHF 47.71
199+
CHF 47.07
249+
CHF 46.43
499+
CHF 45.80
999+
CHF 44.53
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load C | 56 kN |
| Static load Co | 48 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.3 kg |
| d1 | 48.1mm |
| F,E | 64mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 1.3mm |
| da min | 42mm |
| da max | 62mm |
| db | 66mm |
| Da max | 67.8mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
