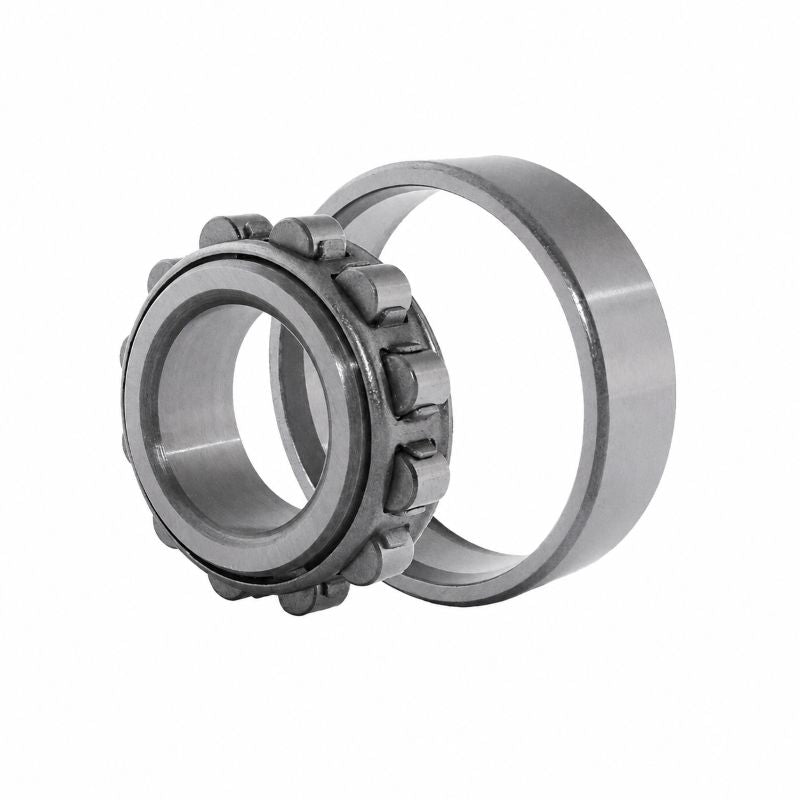

• N208 Budget Single Row Cylindrical Roller Bearing 40x80x18mm
1 1

SKU: N208-EU

N208 Budget Single Row Cylindrical Roller Bearing 40x80x18mm

N208 Budget Single Row Cylindrical Roller Bearing 40x80x18mm
CHF 8.00 ex VAT
CHF 8.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 5.75
19+ CHF 5.43
29+ CHF 5.36
39+ CHF 5.30
49+ CHF 5.23
74+ CHF 5.17
99+ CHF 4.85
199+ CHF 4.78
249+ CHF 4.72
499+ CHF 4.65
999+ CHF 4.52
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
18mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 80mm
B 18mm
Dynamic load C 62 kN
Static load Co 53 kN
Fatigue load limit Pu 6.7 kN
Reference speed 9500 rpm
Limiting speed 11000 rpm
Weight 0.37 kg
d1 54mm
F, E 71.5mm
r1r2 min 1.1mm
r3r4 min 1.1mm
s 1.4mm
da min 47mm
da max 69mm
db min 73mm
Da max 73mm
ra max 1mm
rb max 1mm
kr 0.15
