SKU: N208ECP-SKF

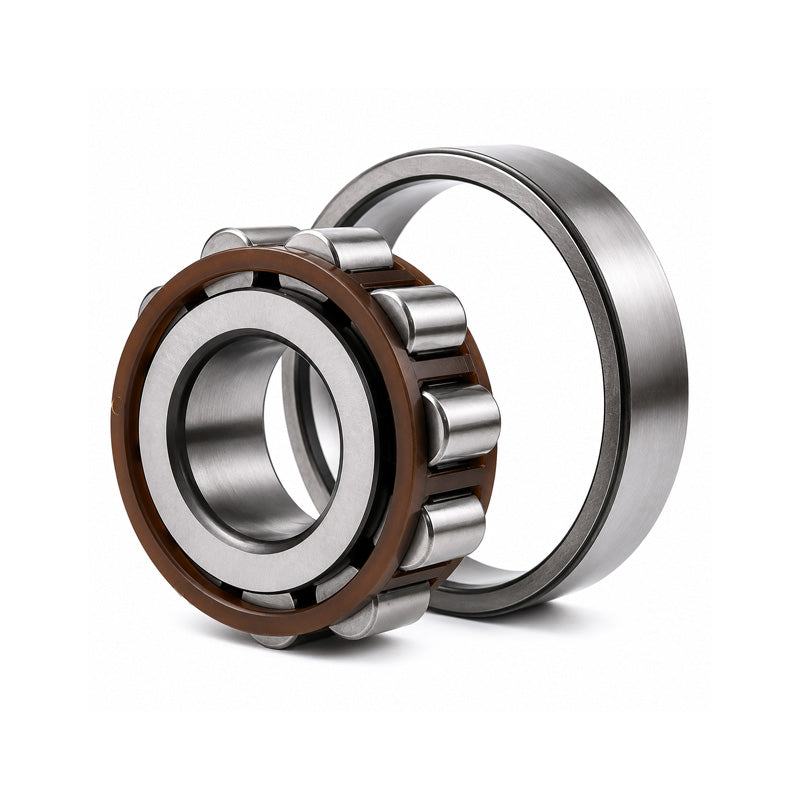

SKF N208ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 40x80x18mm

Name: SKF N208ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 40x80x18mm
Brand: SKF
SKU: N208ECP-SKF
Price: 87.00 CHF
Availability: InStock

CHF 87.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 68.92

19+ CHF 65.04

29+ CHF 64.27

39+ CHF 63.50

49+ CHF 62.72

74+ CHF 61.95

99+ CHF 58.08

199+ CHF 57.30

249+ CHF 56.53

499+ CHF 55.75

999+ CHF 54.20

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 80mm
Width:: 18mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	40mm
D	80mm
B	18mm
Dynamic load C	62 kN
Static load Co	53 kN
Fatigue load limit Pu	6.7 kN
Reference speed	9500 rpm
Limiting speed	11000 rpm
Weight	0.37 kg
d1	54mm
F,E	71.5mm
r1r2 min	1.1mm
r3r4 min	1.1mm
S	1.4mm
da min	47mm
da max	69mm
db	73mm
Da max	73mm
ra max	1mm
rb max	1mm
kr	0.15
