SKU: N211-EU

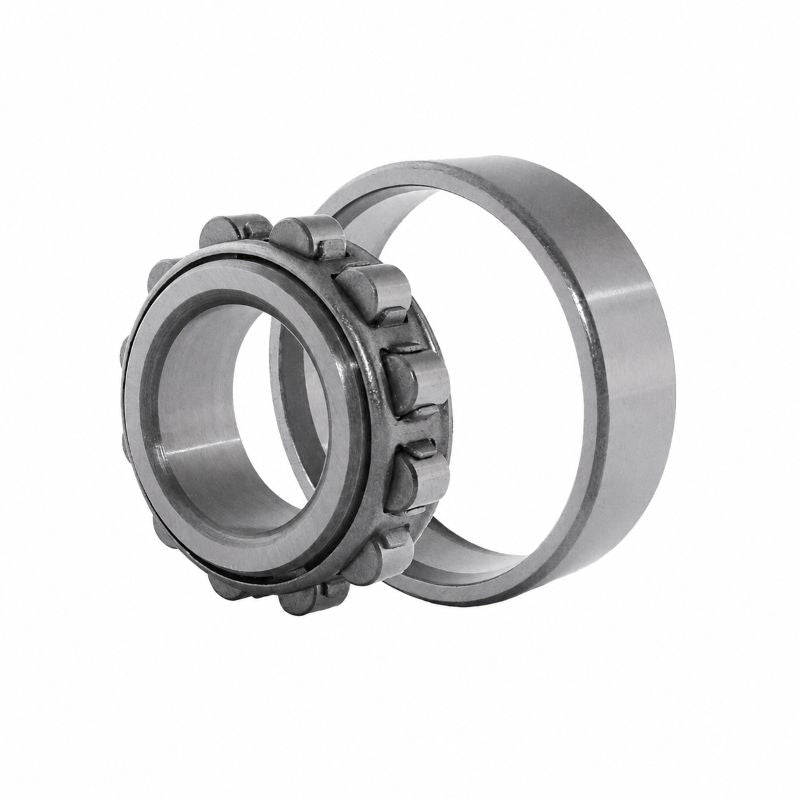

N211 Budget Single Row Cylindrical Roller Bearing 55x100x21mm
N211 Budget Single Row Cylindrical Roller Bearing 55x100x21mm
Regular price
CHF 23.00
ex VAT
Regular price
Sale price
CHF 23.00
ex VAT
In stock
Price Break
10+
CHF 17.78
19+
CHF 16.78
29+
CHF 16.58
39+
CHF 16.38
49+
CHF 16.18
74+
CHF 15.98
99+
CHF 14.99
199+
CHF 14.79
249+
CHF 14.59
499+
CHF 14.39
999+
CHF 13.99
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

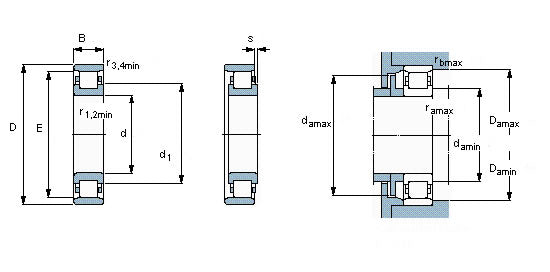

| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load C | 96.5 kN |
| Static load Co | 95 kN |
| Fatigue load limit Pu | 12.2 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.66 kg |
| Cage options | M |
| d1 | 70.8mm |
| F, E | 90mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.1mm |
| s | 1mm |
| da min | 64mm |
| da max | 88mm |
| db min | 92mm |
| Da max | 93mm |
| ra max | 1.5mm |
| rb max | 1mm |
| kr | 0.15 |
