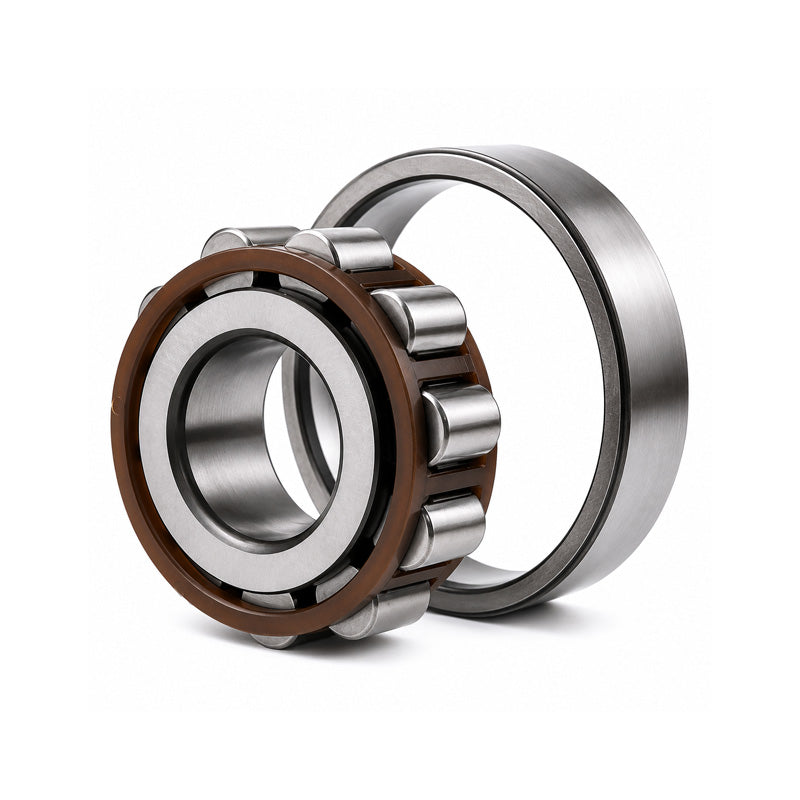

SKF N211ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x100x21mm

Name: SKF N211ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 55x100x21mm
Brand: SKF
SKU: N211ECP-SKF
Price: 216.00 CHF
Availability: InStock

CHF 216.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 171.53

19+ CHF 161.89

29+ CHF 159.96

39+ CHF 158.03

49+ CHF 156.11

74+ CHF 154.18

99+ CHF 144.54

199+ CHF 142.62

249+ CHF 140.69

499+ CHF 138.76

999+ CHF 134.91

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 55mm
Outside Diameter:: 100mm
Width:: 21mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	55mm
D	100mm
B	21mm
Dynamic load C	96.5 kN
Static load Co	95 kN
Fatigue load limit Pu	12.2 kN
Reference speed	7500 rpm
Limiting speed	8000 rpm
Weight	0.66 kg
Alt cage	M
d1	70.8mm
F,E	90mm
r1r2 min	1.5mm
r3r4 min	1.1mm
S	1mm
da min	64mm
da max	88mm
db	92mm
Da max	93mm
ra max	1.5mm
rb max	1mm
kr	0.15
