SKU: N212-EU

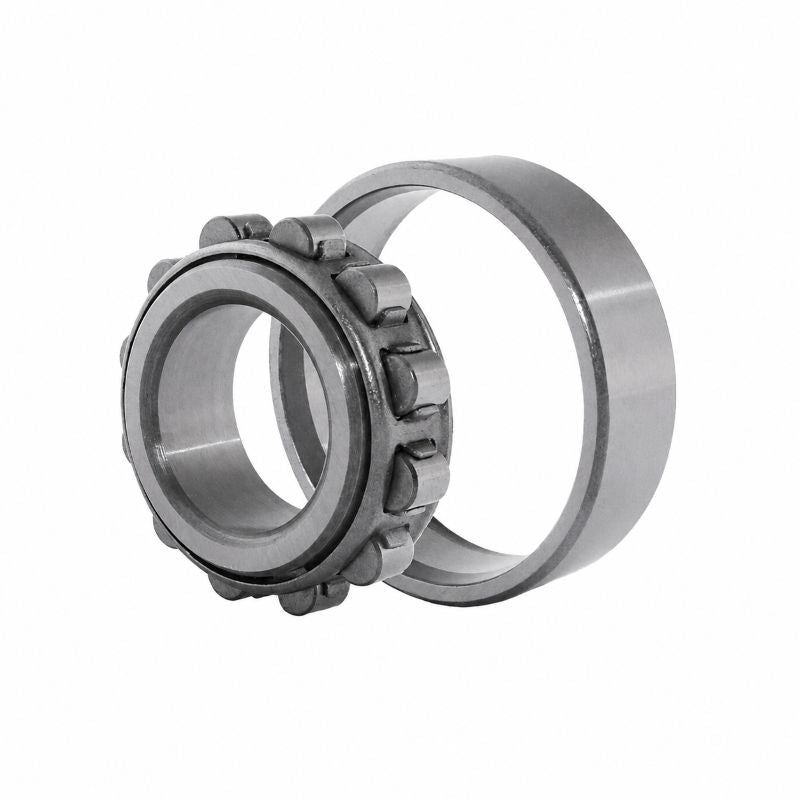

N212 Budget Single Row Cylindrical Roller Bearing 60x110x22mm
N212 Budget Single Row Cylindrical Roller Bearing 60x110x22mm
Regular price
CHF 89.58
ex VAT
Regular price
Sale price
CHF 89.58
ex VAT
In stock
Price Break
10+
CHF 79.73
19+
CHF 75.25
29+
CHF 74.35
39+
CHF 73.46
49+
CHF 72.56
74+
CHF 71.66
99+
CHF 67.19
199+
CHF 66.29
249+
CHF 65.39
499+
CHF 64.50
999+
CHF 62.71
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 22mm |
| Dynamic load C | 108 kN |
| Static load Co | 102 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.8 kg |
| Cage options | M |
| d1 | 77.5mm |
| F, E | 100mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.4mm |
| da min | 69mm |
| da max | 98mm |
| db min | 101mm |
| Da max | 101mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
