SKU: N213-EU

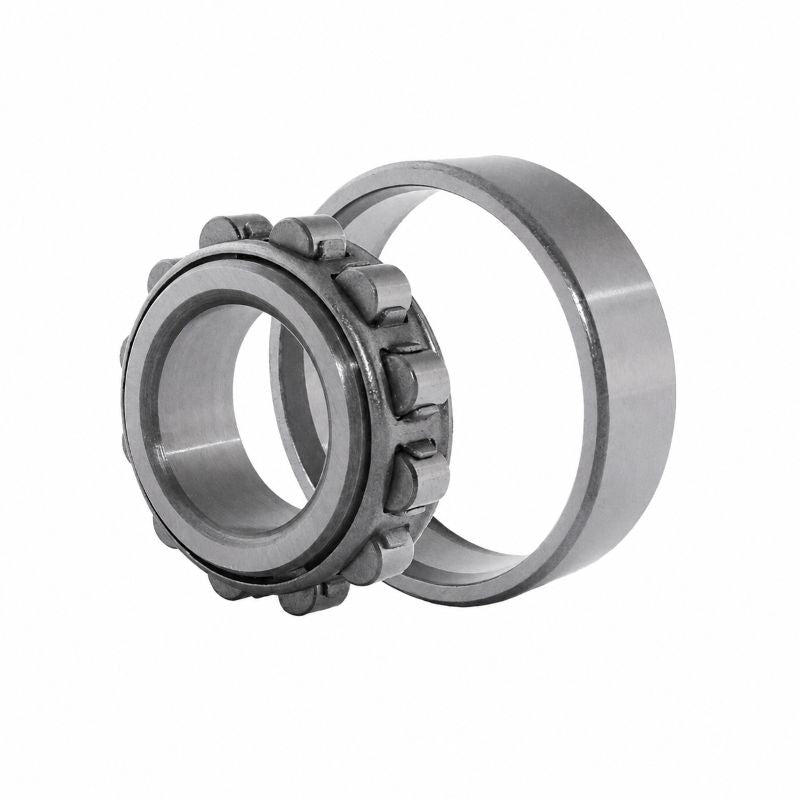

N213 Budget Single Row Cylindrical Roller Bearing 65x120x23mm
N213 Budget Single Row Cylindrical Roller Bearing 65x120x23mm
Regular price
CHF 109.49
ex VAT
Regular price
Sale price
CHF 109.49
ex VAT
In stock
Price Break
10+
CHF 97.45
19+
CHF 91.97
29+
CHF 90.88
39+
CHF 89.78
49+
CHF 88.69
74+
CHF 87.59
99+
CHF 82.12
199+
CHF 81.02
249+
CHF 79.93
499+
CHF 78.83
999+
CHF 76.64
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| Dynamic load C | 122 kN |
| Static load Co | 118 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 6300 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.05 kg |
| d1 | 84.4mm |
| F, E | 108.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.4mm |
| da min | 74mm |
| da max | 106mm |
| db min | 111mm |
| Da max | 111mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
