SKU: N213ECP-SKF

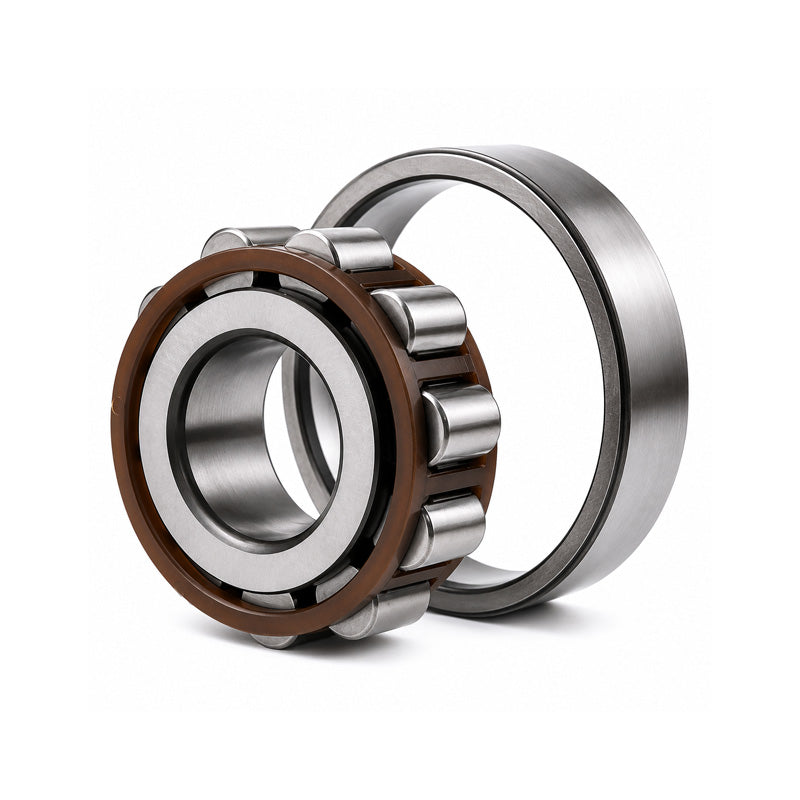

SKF N213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm

Name: SKF N213ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 65x120x23mm
Brand: SKF
SKU: N213ECP-SKF
Price: 258.00 CHF
Availability: InStock

CHF 258.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 205.20

19+ CHF 193.67

29+ CHF 191.37

39+ CHF 189.06

49+ CHF 186.75

74+ CHF 184.45

99+ CHF 172.92

199+ CHF 170.62

249+ CHF 168.31

499+ CHF 166.00

999+ CHF 161.39

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 120mm
Width:: 23mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	65mm
D	120mm
B	23mm
Dynamic load C	122 kN
Static load Co	118 kN
Fatigue load limit Pu	15.6 kN
Reference speed	6300 rpm
Limiting speed	6700 rpm
Weight	1.05 kg
d1	84.4mm
F,E	108.5mm
r1r2 min	1.5mm
r3r4 min	1.5mm
S	1.4mm
da min	74mm
da max	106mm
db	111mm
Da max	111mm
ra max	1.5mm
rb max	1.5mm
kr	0.15
