SKU: N215ECP-SKF

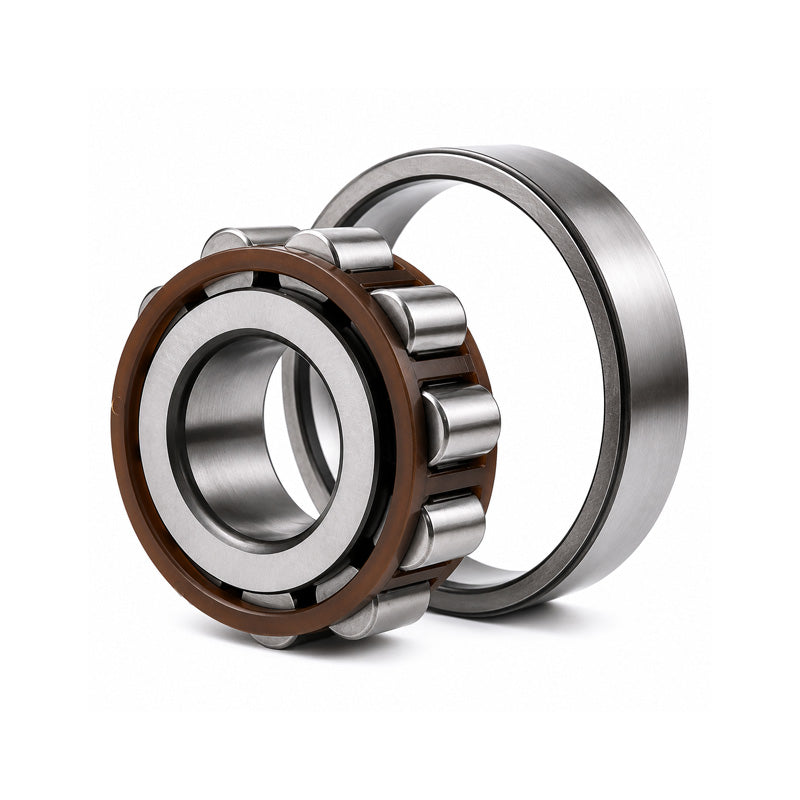

SKF N215ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x25mm

Name: SKF N215ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 75x130x25mm
Brand: SKF
SKU: N215ECP-SKF
Price: 273.00 CHF
Availability: InStock

CHF 273.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 217.01

19+ CHF 204.82

29+ CHF 202.38

39+ CHF 199.94

49+ CHF 197.51

74+ CHF 195.07

99+ CHF 182.88

199+ CHF 180.44

249+ CHF 178.00

499+ CHF 175.56

999+ CHF 170.68

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 75mm
Outside Diameter:: 130mm
Width:: 25mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	75mm
D	130mm
B	25mm
Dynamic load C	150 kN
Static load Co	156 kN
Fatigue load limit Pu	20.4 kN
Reference speed	5600 rpm
Limiting speed	6000 rpm
Weight	1.2 kg
d1	94.3mm
F,E	118.5mm
r1r2 min	1.5mm
r3r4 min	1.5mm
S	1.2mm
da min	84mm
da max	116mm
db	121mm
Da max	121mm
ra max	1.5mm
rb max	1.5mm
kr	0.15
