SKU: N219ECP-SKF

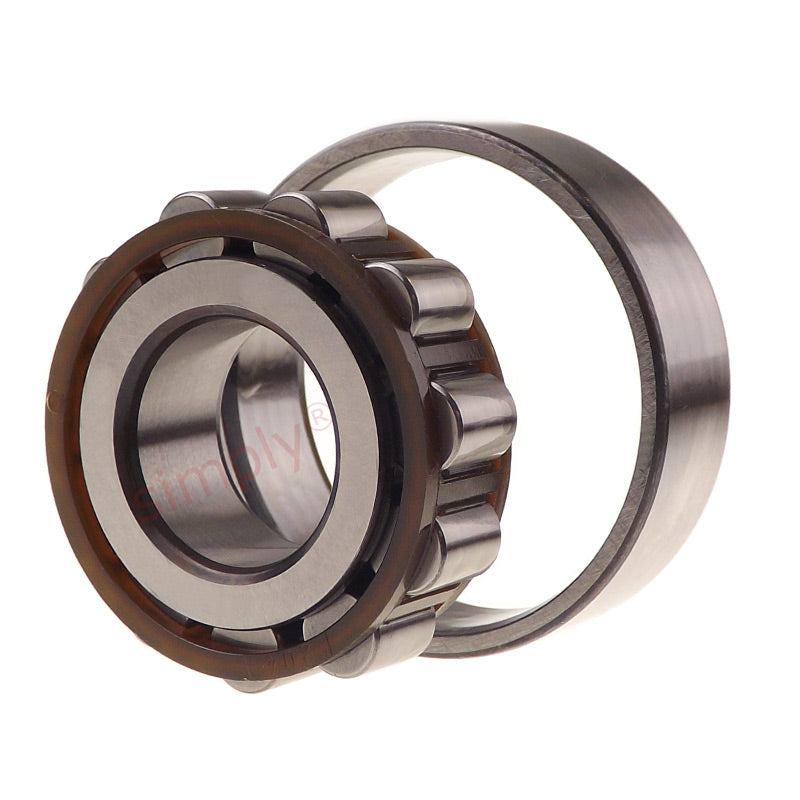

SKF N219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
SKF N219ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 95x170x32mm
Regular price
CHF 493.10
ex VAT
Regular price
Sale price
CHF 493.10
ex VAT
In stock
Price Break
10+
CHF 438.86
19+
CHF 414.20
29+
CHF 409.27
39+
CHF 404.34
49+
CHF 399.41
74+
CHF 394.48
99+
CHF 369.83
199+
CHF 364.89
249+
CHF 359.96
499+
CHF 355.03
999+
CHF 345.17
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| Dynamic load C | 255 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 32.5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4800 rpm |
| Weight | 2.85 kg |
| d1 | 120mm |
| F,E | 154.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.7mm |
| da min | 107mm |
| da max | 152mm |
| db | 157mm |
| Da max | 158mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
