SKU: N220ECP-SKF

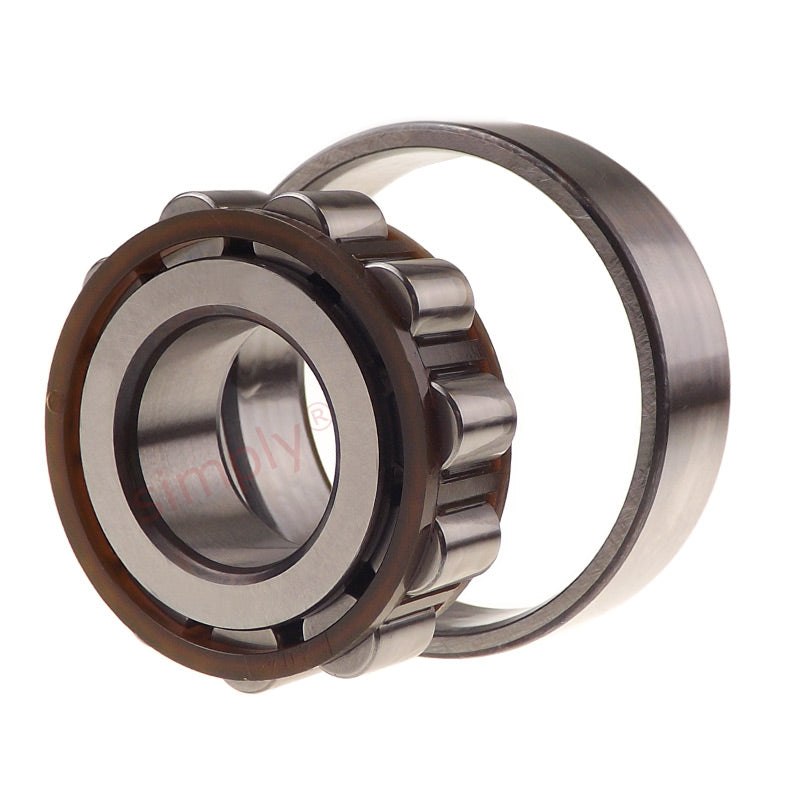

SKF N220ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x180x34mm

Name: SKF N220ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 100x180x34mm
Brand: SKF
SKU: N220ECP-SKF
Price: 432.00 CHF
Availability: InStock

CHF 432.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 343.96

19+ CHF 324.63

29+ CHF 320.77

39+ CHF 316.90

49+ CHF 313.04

74+ CHF 309.18

99+ CHF 289.85

199+ CHF 285.99

249+ CHF 282.12

499+ CHF 278.26

999+ CHF 270.53

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: SKF - High Quality
Inside Diameter:: 100mm
Outside Diameter:: 180mm
Width:: 34mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	100mm
D	180mm
B	34mm
Dynamic load C	285 kN
Static load Co	305 kN
Fatigue load limit Pu	36.5 kN
Reference speed	4000 rpm
Limiting speed	4500 rpm
Weight	3.45 kg
d1	127mm
F,E	163mm
r1r2 min	2.1mm
r3r4 min	2.1mm
S	1.7mm
da min	112mm
da max	160mm
db	166mm
Da max	168mm
ra max	2mm
rb max	2mm
kr	0.15
