SKU: N224ECP-SKF

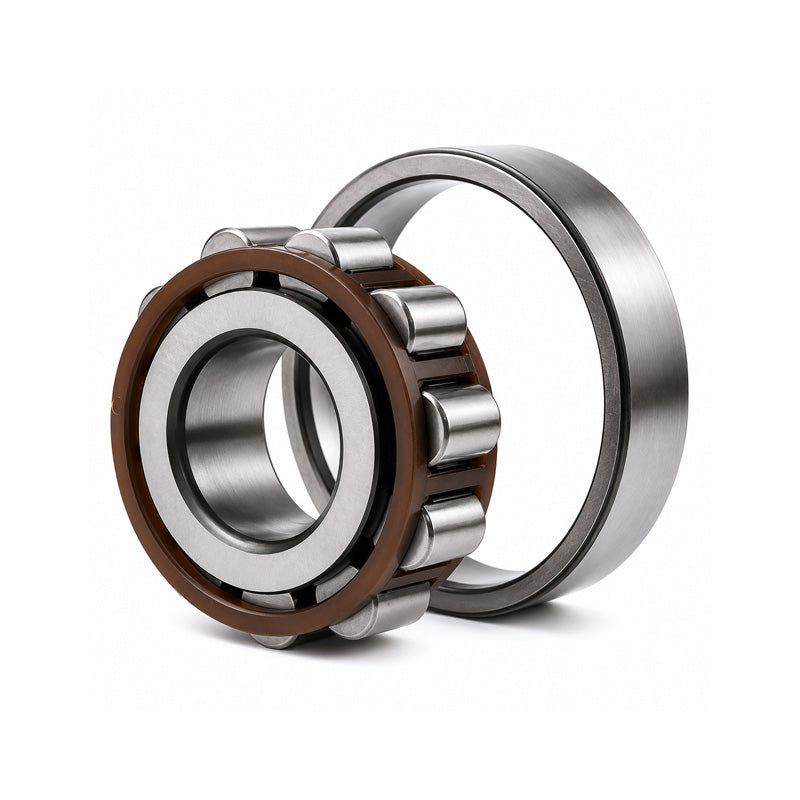

SKF N224ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 120x215x40mm
SKF N224ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 120x215x40mm
Regular price
CHF 549.57
ex VAT
Regular price
Sale price
CHF 549.57
ex VAT
In stock
Price Break
10+
CHF 489.12
19+
CHF 461.64
29+
CHF 456.14
39+
CHF 450.65
49+
CHF 445.15
74+
CHF 439.66
99+
CHF 412.18
199+
CHF 406.68
249+
CHF 401.19
499+
CHF 395.69
999+
CHF 384.70
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 40mm |
| Dynamic load C | 390 kN |
| Static load Co | 430 kN |
| Fatigue load limit Pu | 49 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 5.75 kg |
| Alt cage | M |
| d1 | 153mm |
| F,E | 195.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.9mm |
| da min | 132mm |
| da max | 192mm |
| db | 199mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
