SKU: N305ECP-SKF

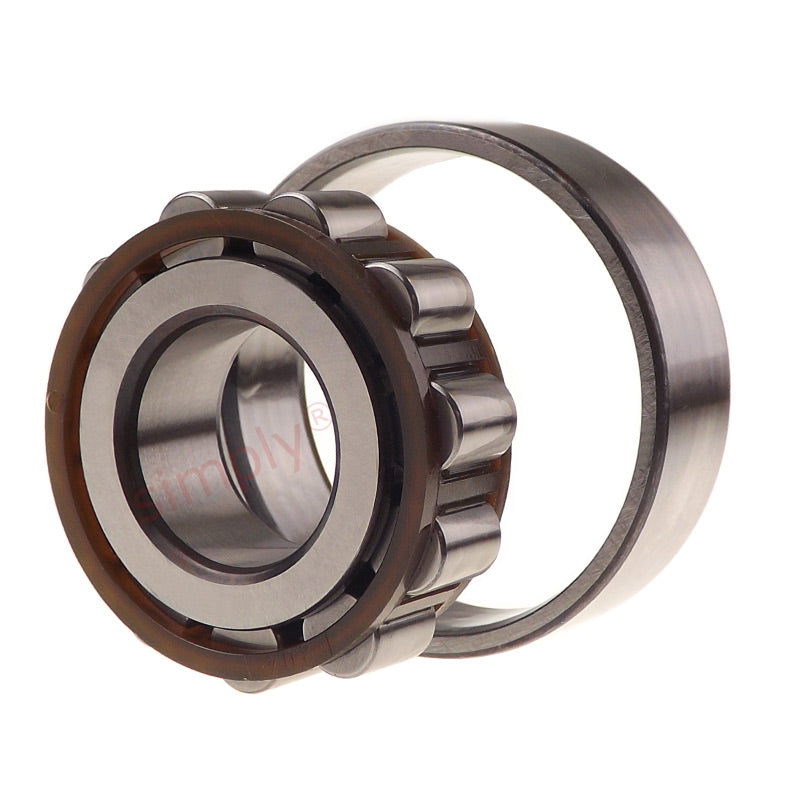

SKF N305ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 25x62x17mm
SKF N305ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 25x62x17mm
Regular price
CHF 112.00
ex VAT
Regular price
Sale price
CHF 112.00
ex VAT
In stock
Price Break
10+
CHF 88.72
19+
CHF 83.74
29+
CHF 82.74
39+
CHF 81.75
49+
CHF 80.75
74+
CHF 79.75
99+
CHF 74.77
199+
CHF 73.77
249+
CHF 72.77
499+
CHF 71.78
999+
CHF 69.78
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 17mm |
| Dynamic load C | 46.5 kN |
| Static load Co | 36.5 kN |
| Fatigue load limit Pu | 4.55 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 15000 rpm |
| Weight | 0.24 kg |
| d1 | 38.1mm |
| F,E | 54mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.3mm |
| da min | 32mm |
| da max | 52mm |
| db | 56mm |
| Da max | 55mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
