SKU: N309-EU

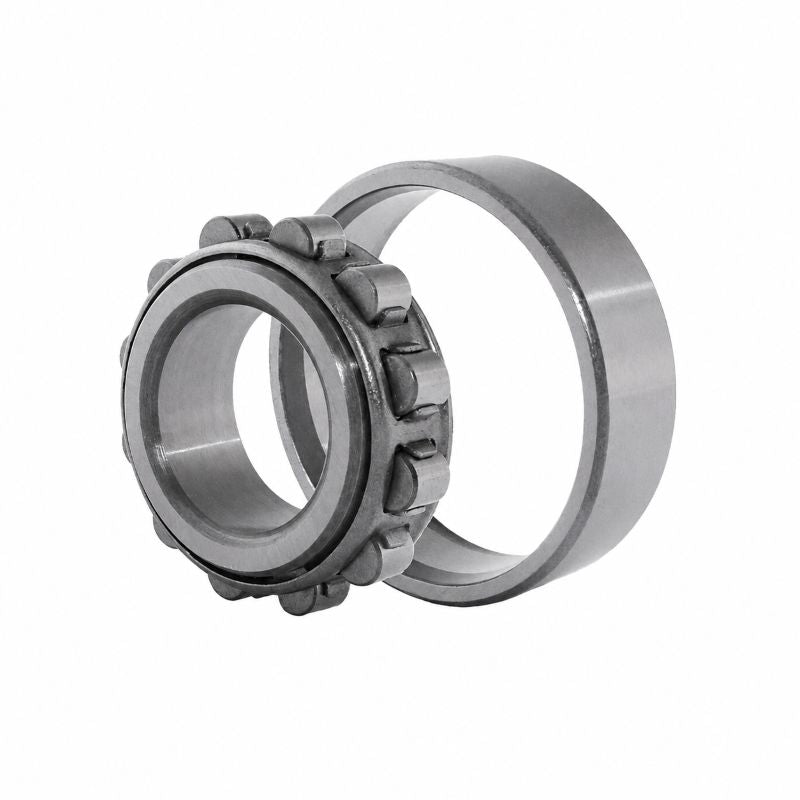

N309 Budget Single Row Cylindrical Roller Bearing 45x100x25mm
N309 Budget Single Row Cylindrical Roller Bearing 45x100x25mm
Regular price
CHF 17.00
ex VAT
Regular price
Sale price
CHF 17.00
ex VAT
In stock
Price Break
10+
CHF 12.78
19+
CHF 12.06
29+
CHF 11.92
39+
CHF 11.78
49+
CHF 11.63
74+
CHF 11.49
99+
CHF 10.77
199+
CHF 10.63
249+
CHF 10.48
499+
CHF 10.34
999+
CHF 10.05
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.88 kg |
| d1 | 64.4mm |
| F, E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| s | 1.7mm |
| da min | 54mm |
| da max | 86mm |
| db min | 91mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
