SKU: N309ECP-SKF

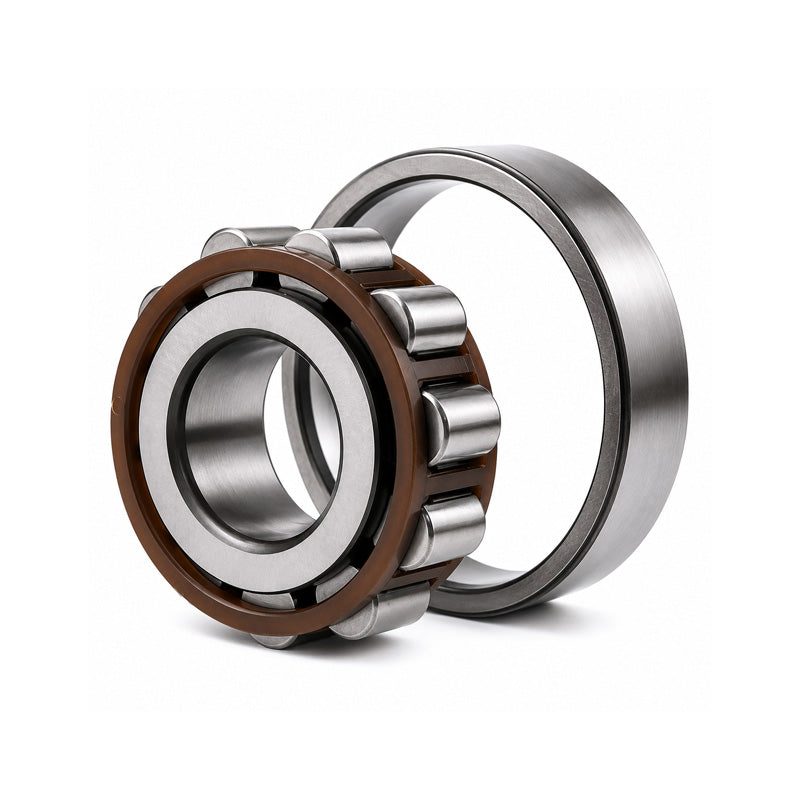

SKF N309ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
SKF N309ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 45x100x25mm
Regular price
CHF 127.00
ex VAT
Regular price
Sale price
CHF 127.00
ex VAT
In stock
Price Break
10+
CHF 100.75
19+
CHF 95.09
29+
CHF 93.95
39+
CHF 92.82
49+
CHF 91.69
74+
CHF 90.56
99+
CHF 84.90
199+
CHF 83.77
249+
CHF 82.63
499+
CHF 81.50
999+
CHF 79.24
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| Dynamic load C | 112 kN |
| Static load Co | 100 kN |
| Fatigue load limit Pu | 12.9 kN |
| Reference speed | 7500 rpm |
| Limiting speed | 8500 rpm |
| Weight | 0.88 kg |
| d1 | 64.4mm |
| F,E | 88.5mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1.5mm |
| S | 1.7mm |
| da min | 54mm |
| da max | 86mm |
| db | 91mm |
| Da max | 91mm |
| ra max | 1.5mm |
| rb max | 1.5mm |
| kr | 0.15 |
