SKU: N310-EU

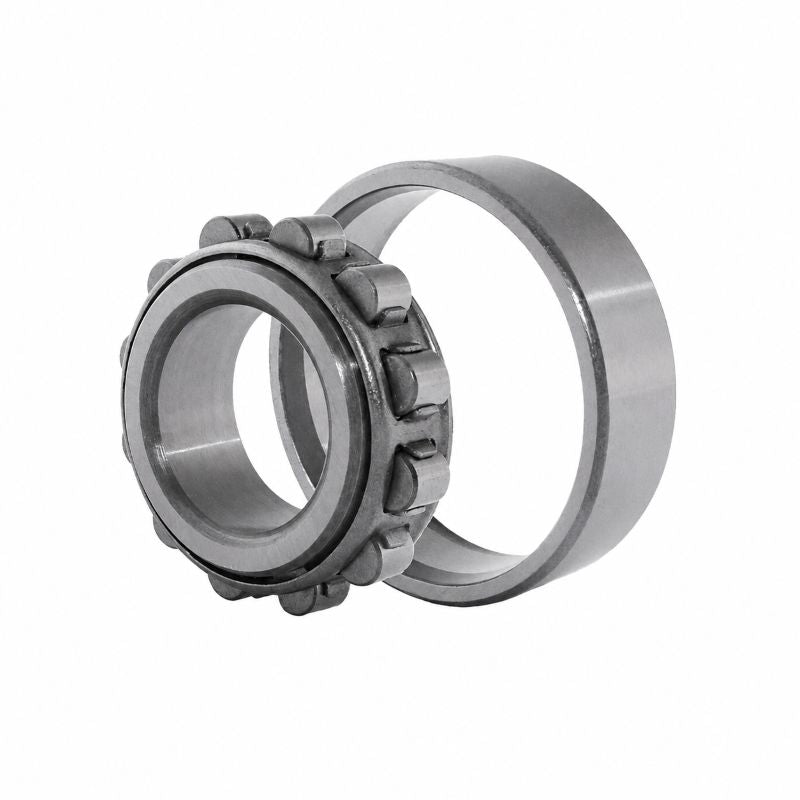

N310 Budget Single Row Cylindrical Roller Bearing 50x110x27mm
N310 Budget Single Row Cylindrical Roller Bearing 50x110x27mm
Regular price
CHF 77.73
ex VAT
Regular price
Sale price
CHF 77.73
ex VAT
In stock
Price Break
10+
CHF 69.18
19+
CHF 65.29
29+
CHF 64.52
39+
CHF 63.74
49+
CHF 62.96
74+
CHF 62.18
99+
CHF 58.30
199+
CHF 57.52
249+
CHF 56.74
499+
CHF 55.97
999+
CHF 54.41
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 127 kN |
| Static load Co | 112 kN |
| Fatigue load limit Pu | 15 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.14 kg |
| Cage options | M |
| d1 | 71.2mm |
| F, E | 97mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 1.9mm |
| da min | 61mm |
| da max | 95mm |
| db min | 99mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
