SKU: N310ECP-SKF

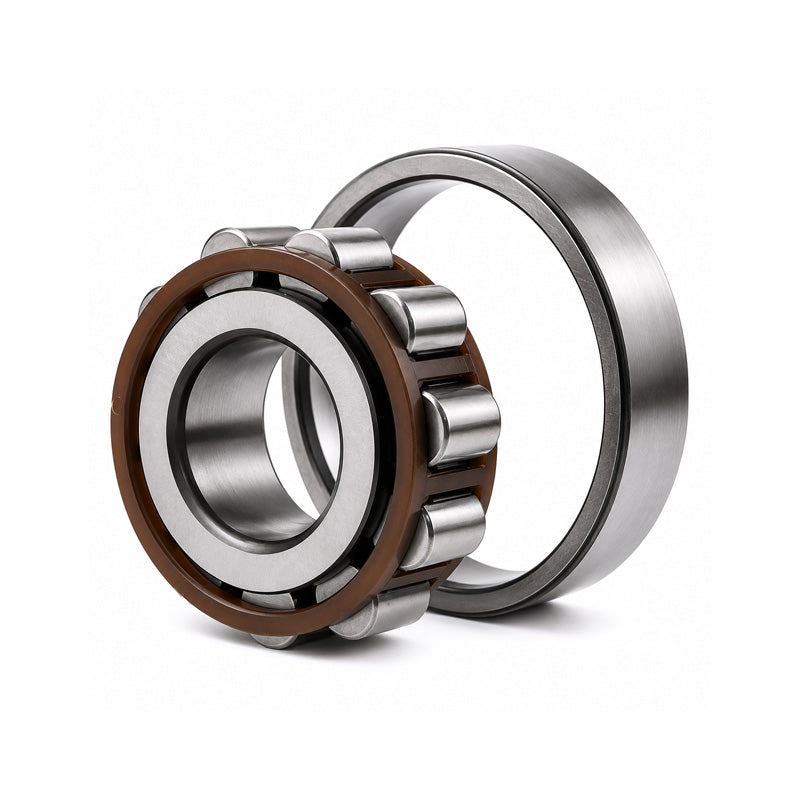

SKF N310ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x110x27mm
SKF N310ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 50x110x27mm
Regular price
CHF 142.46
ex VAT
Regular price
Sale price
CHF 142.46
ex VAT
In stock
Price Break
10+
CHF 126.79
19+
CHF 119.67
29+
CHF 118.24
39+
CHF 116.82
49+
CHF 115.39
74+
CHF 113.97
99+
CHF 106.85
199+
CHF 105.42
249+
CHF 104.00
499+
CHF 102.57
999+
CHF 99.72
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| Dynamic load C | 127 kN |
| Static load Co | 112 kN |
| Fatigue load limit Pu | 15 kN |
| Reference speed | 6700 rpm |
| Limiting speed | 8000 rpm |
| Weight | 1.14 kg |
| Alt cage | M |
| d1 | 71.2mm |
| F,E | 97mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| S | 1.9mm |
| da min | 61mm |
| da max | 95mm |
| db | 99mm |
| Da max | 99mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
