SKU: N311-EU

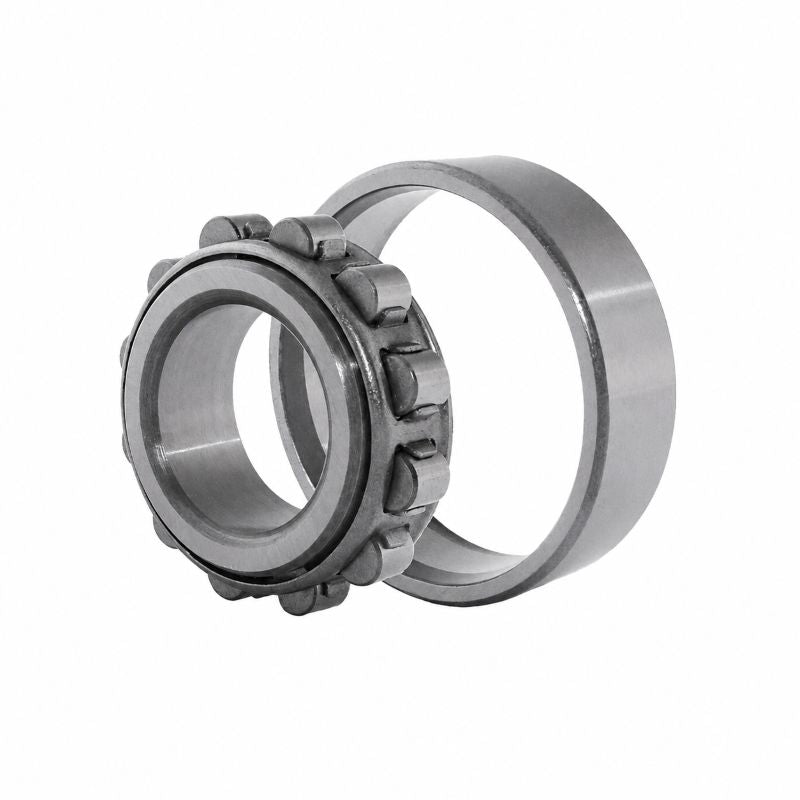

N311 Budget Single Row Cylindrical Roller Bearing 55x120x29mm
N311 Budget Single Row Cylindrical Roller Bearing 55x120x29mm
Regular price
CHF 32.00
ex VAT
Regular price
Sale price
CHF 32.00
ex VAT
In stock
Price Break
10+
CHF 24.83
19+
CHF 23.44
29+
CHF 23.16
39+
CHF 22.88
49+
CHF 22.60
74+
CHF 22.32
99+
CHF 20.93
199+
CHF 20.65
249+
CHF 20.37
499+
CHF 20.09
999+
CHF 19.53
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 156 kN |
| Static load Co | 143 kN |
| Fatigue load limit Pu | 18.6 kN |
| Reference speed | 6000 rpm |
| Limiting speed | 7000 rpm |
| Weight | 1.45 kg |
| Cage options | M |
| d1 | 77.5mm |
| F, E | 106.5mm |
| r1r2 min | 2mm |
| r3r4 min | 2mm |
| s | 2mm |
| da min | 66mm |
| da max | 104mm |
| db min | 109mm |
| Da max | 109mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
