SKU: N313-E-TVP2
N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
N313-E-TVP2 X-life Cylindrical Roller Bearing with Cage 65x140x33mm
Regular price
CHF 166.79
ex VAT
Regular price
Sale price
CHF 166.79
ex VAT
In stock
Price Break
10+
CHF 148.44
19+
CHF 140.10
29+
CHF 138.44
39+
CHF 136.77
49+
CHF 135.10
74+
CHF 133.43
99+
CHF 125.09
199+
CHF 123.42
249+
CHF 121.76
499+
CHF 120.09
999+
CHF 116.75
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard

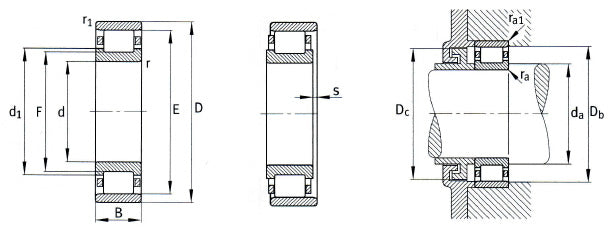

Technical
Technical
| d | 65 |
|---|---|
| D | 140 |
| B | 33 |
| r min | 2.1 |
| r1 min | 2.1 |
| s | 1.4 |
| E | 124.5 |
| F | 82.5 |
| d1 | 90.5 |
| da min | 77 |
| Da max | 128 |
| Db min | 126 |
| Dc max | 123 |
| ra max | 2.1 |
| ra1 max | 2.1 |
| Dynamic load | 214000 N |
| Static load | 191000 N |
| Fatigue limit load | 32000 N |
| Limiting speed | 4800 rpm |
| Reference speed | 4900 rpm |
| Weight | 2.28 kg |
