SKU: N315-EU

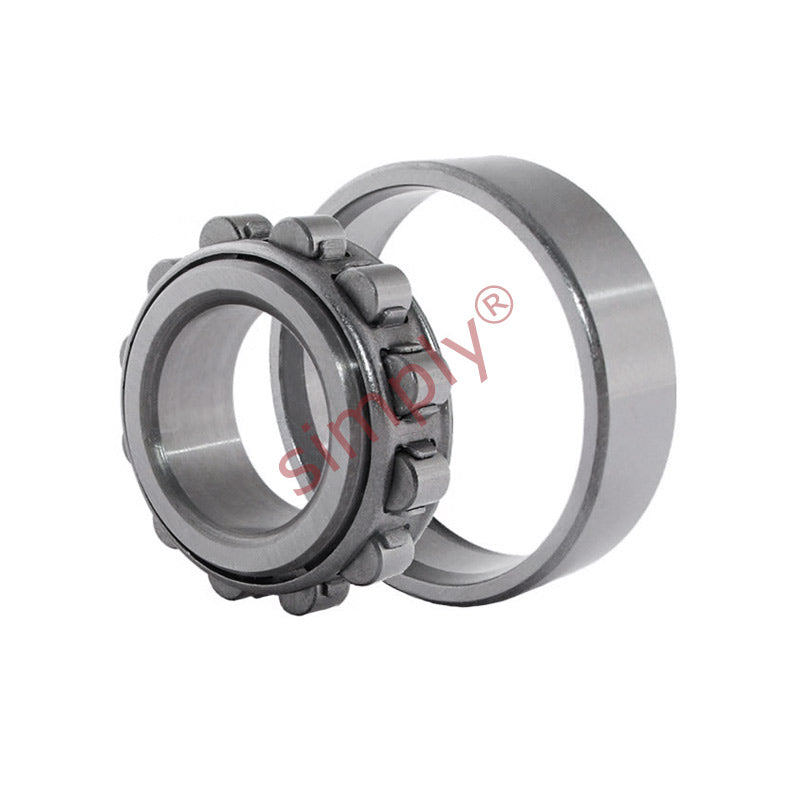

N315 Budget Single Row Cylindrical Roller Bearing 75x160x37mm
N315 Budget Single Row Cylindrical Roller Bearing 75x160x37mm
Regular price
CHF 161.63
ex VAT
Regular price
Sale price
CHF 161.63
ex VAT
In stock
Price Break
10+
CHF 143.85
19+
CHF 135.77
29+
CHF 134.15
39+
CHF 132.54
49+
CHF 130.92
74+
CHF 129.30
99+
CHF 121.22
199+
CHF 119.61
249+
CHF 117.99
499+
CHF 116.37
999+
CHF 113.14
Couldn't load pickup availability
Description
Description
|
N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- * Standard

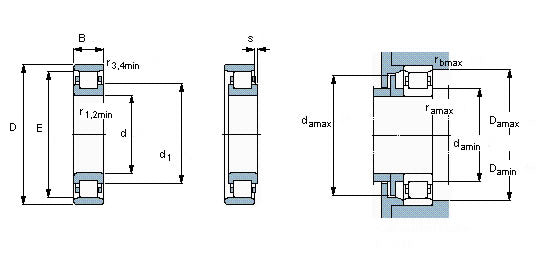

Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| Cage options | M |
| d1 | 104mm |
| F, E | 143mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| s | 1.8mm |
| da min | 87mm |
| da max | 140mm |
| db min | 146mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
