SKU: N315ECP/C3-SKF

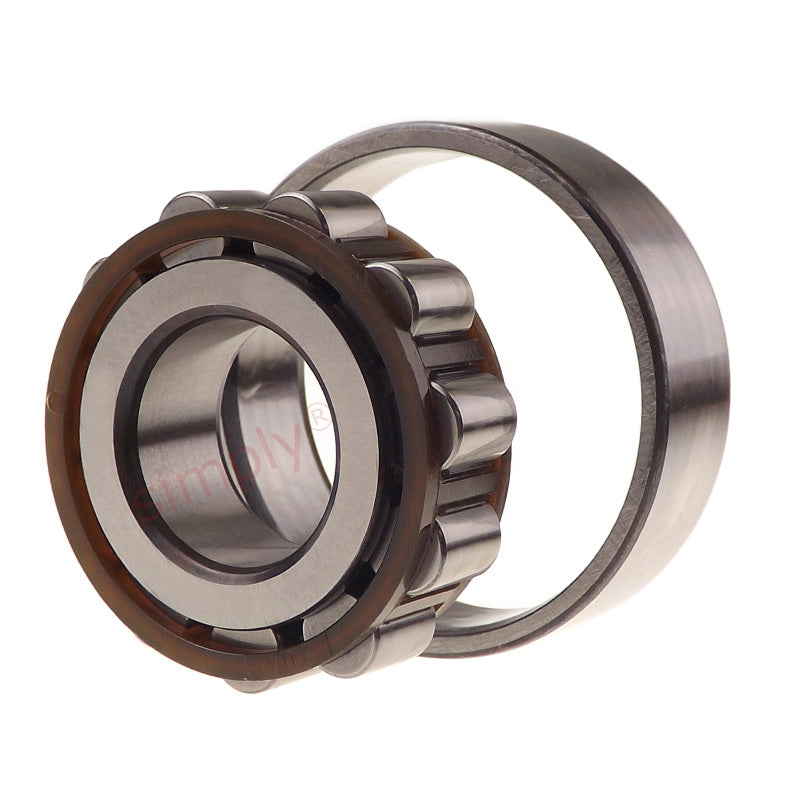

SKF N315ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 75x160x37mm
SKF N315ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 75x160x37mm
Regular price
CHF 362.47
ex VAT
Regular price
Sale price
CHF 362.47
ex VAT
In stock
Price Break
10+
CHF 322.60
19+
CHF 304.47
29+
CHF 300.85
39+
CHF 297.23
49+
CHF 293.60
74+
CHF 289.98
99+
CHF 271.85
199+
CHF 268.23
249+
CHF 264.60
499+
CHF 260.98
999+
CHF 253.73
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 75mm |
|---|---|
| D | 160mm |
| B | 37mm |
| Dynamic load C | 280 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 33.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5300 rpm |
| Weight | 3.3 kg |
| Alt cage | M |
| d1 | 104mm |
| F,E | 143mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 1.8mm |
| da min | 87mm |
| da max | 140mm |
| db | 146mm |
| Da max | 148mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.15 |
