SKF N318ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x43mm
SKF N318ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x43mm
Regular price
CHF 439.23
ex VAT
Regular price
Sale price
CHF 439.23
ex VAT
In stock
Price Break
10+
CHF 390.91
19+
CHF 368.95
29+
CHF 364.56
39+
CHF 360.17
49+
CHF 355.78
74+
CHF 351.38
99+
CHF 329.42
199+
CHF 325.03
249+
CHF 320.64
499+
CHF 316.25
999+
CHF 307.46
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

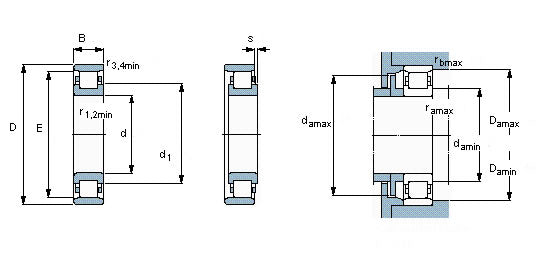

| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load C | 365 kN |
| Static load Co | 360 kN |
| Fatigue load limit Pu | 43 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4500 rpm |
| Weight | 5.3 kg |
| Alt cage | M |
| d1 | 124mm |
| F,E | 169.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 2.5mm |
| da min | 104mm |
| da max | 166mm |
| db | 173mm |
| Da max | 176mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
