SKU: N322ECP-SKF

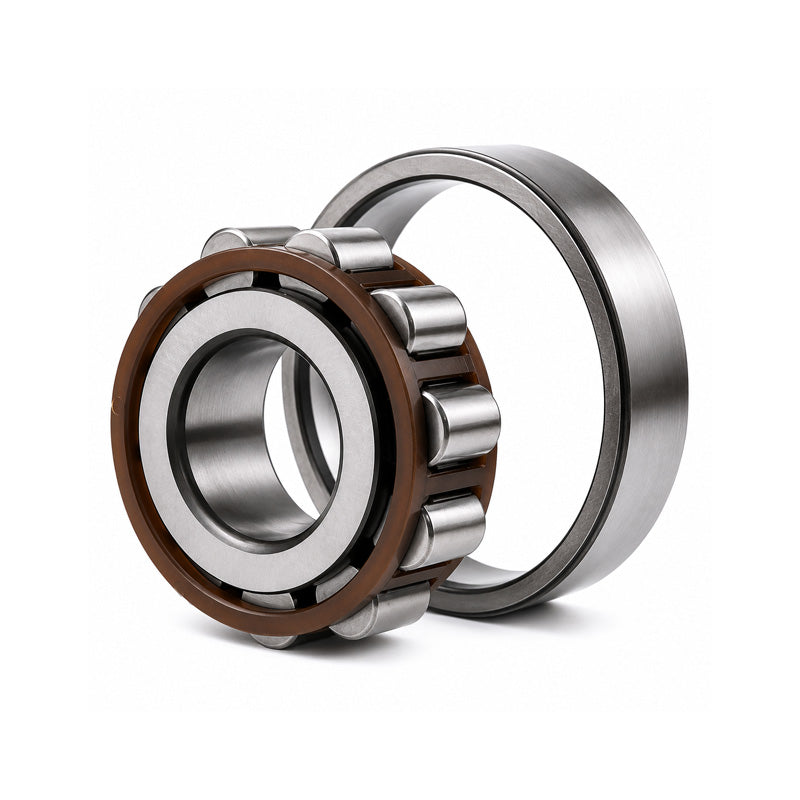

SKF N322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x50mm
SKF N322ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 110x240x50mm
Regular price
CHF 783.16
ex VAT
Regular price
Sale price
CHF 783.16
ex VAT
In stock
Price Break
10+
CHF 697.01
19+
CHF 657.85
29+
CHF 650.02
39+
CHF 642.19
49+
CHF 634.36
74+
CHF 626.53
99+
CHF 587.37
199+
CHF 579.54
249+
CHF 571.71
499+
CHF 563.88
999+
CHF 548.21
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 240mm
- Width:
- 50mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 110mm |
|---|---|
| D | 240mm |
| B | 50mm |
| Dynamic load C | 530 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 61 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 3400 rpm |
| Weight | 10.2 kg |
| Alt cage | M |
| d1 | 155mm |
| F,E | 211mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3mm |
| da min | 124mm |
| da max | 208mm |
| db | 215mm |
| Da max | 226mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
