SKU: N324ECP-SKF

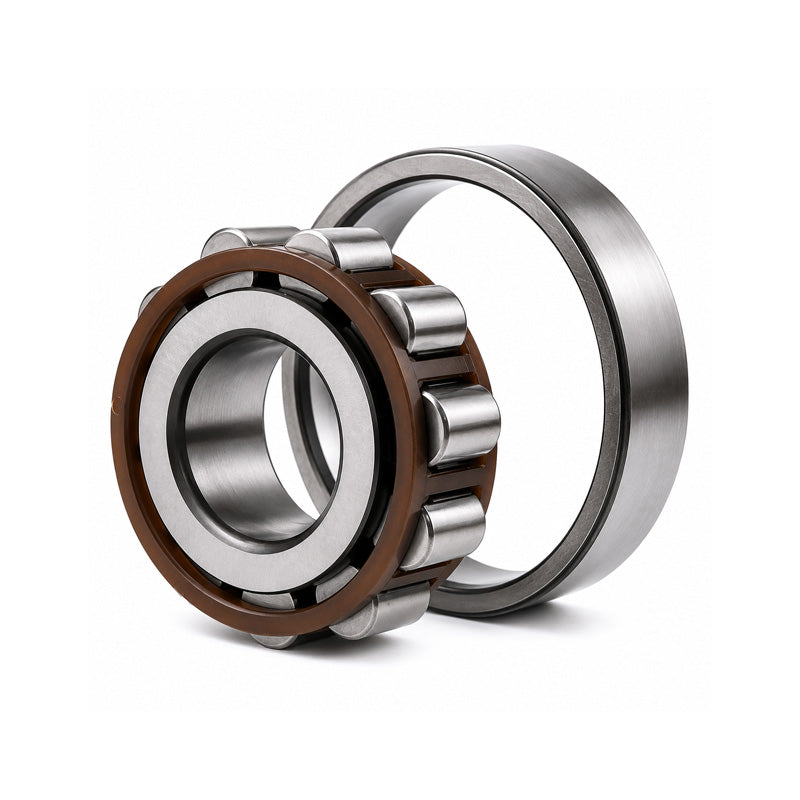

SKF N324ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 120x260x55mm
SKF N324ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 120x260x55mm
Regular price
CHF 799.97
ex VAT
Regular price
Sale price
CHF 799.97
ex VAT
In stock
Price Break
10+
CHF 711.97
19+
CHF 671.97
29+
CHF 663.98
39+
CHF 655.98
49+
CHF 647.98
74+
CHF 639.98
99+
CHF 599.98
199+
CHF 591.98
249+
CHF 583.98
499+
CHF 575.98
999+
CHF 559.98
Couldn't load pickup availability
Description
Description
|
SKF N Series Single Row Cylindrical Roller Bearings: The inner ring of this type has two integral flanges around which the rollers are assembled, the outer raceway has no flanges and is removable allowing ease of assembly and axial movements in either direction Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 260mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 260mm |
| B | 55mm |
| Dynamic load C | 610 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 69.5 kN |
| Reference speed | 2800 rpm |
| Limiting speed | 3200 rpm |
| Weight | 13 kg |
| Alt cage | M |
| d1 | 168mm |
| F,E | 230mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 3.7mm |
| da min | 134mm |
| da max | 226mm |
| db | 234mm |
| Da max | 246mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.15 |
