SKU: NA2202.2RS-SKF

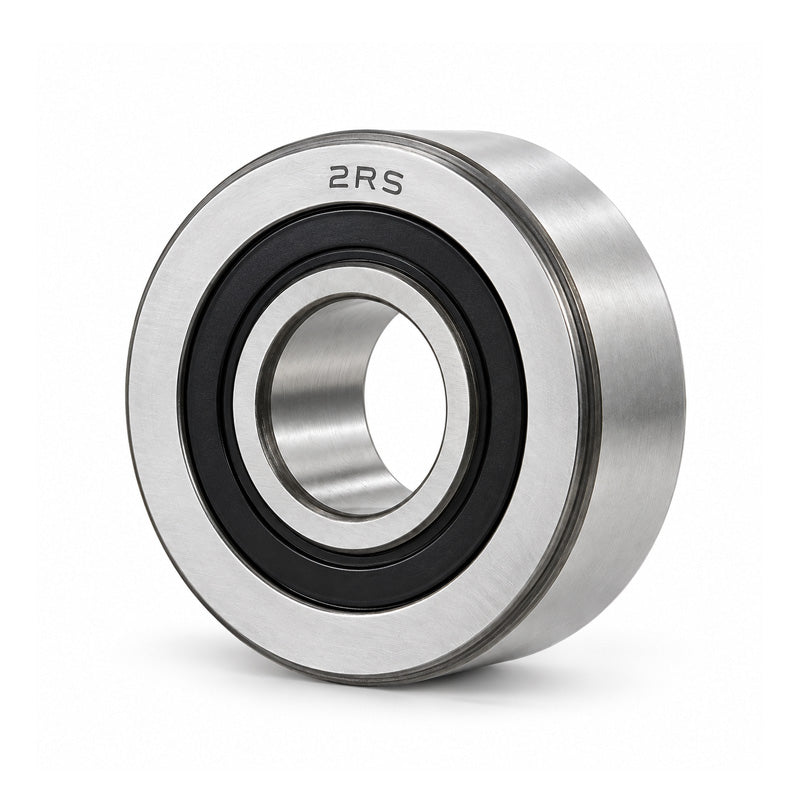

SKF NA22022RS Support Roller Without Axial Guidance With Inner Sleeve 15x35x13.8mm
SKF NA22022RS Support Roller Without Axial Guidance With Inner Sleeve 15x35x13.8mm
Regular price
CHF 74.61
ex VAT
Regular price
Sale price
CHF 74.61
ex VAT
In stock
Price Break
5+
CHF 73.86
10+
CHF 70.88
20+
CHF 69.39
50+
CHF 67.15
100+
CHF 65.66
500+
CHF 61.93
1000+
CHF 52.23
Couldn't load pickup availability
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 13.8mm
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| C | 13.8mm |
| B | 14mm |
| D1 | 26mm |
| F | 20mm |
| r min | 0.6mm |
| r1r2 min | 0.3mm |
| Speed rating | 3400 rpm |
| Dynamic load | 7210 N |
| Basic static load | 9000 N |
| Fatigue load limit Pu | 1040 N |
| Max radial dynamic force | 9650 N |
| Max radial static force | 13700 N |
| Weight | 75 g |
