SKU: NA2205.2RS-SKF

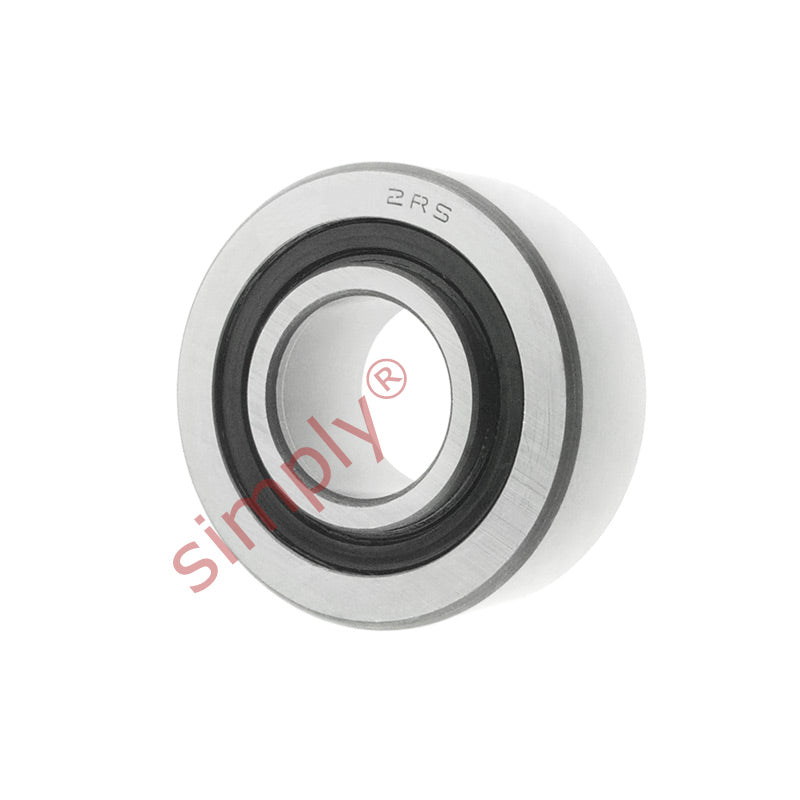

SKF NA22052RS Support Roller Without Axial Guidance With Inner Sleeve 25x52x17.8mm
SKF NA22052RS Support Roller Without Axial Guidance With Inner Sleeve 25x52x17.8mm
Regular price
CHF 111.88
ex VAT
Regular price
Sale price
CHF 111.88
ex VAT
In stock
Price Break
5+
CHF 110.76
10+
CHF 106.29
20+
CHF 104.05
50+
CHF 100.69
100+
CHF 98.45
500+
CHF 92.86
1000+
CHF 78.32
Couldn't load pickup availability
Description
Description
Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers are supplied with inner rings and are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 17.8mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| C | 17.8mm |
| B | 18mm |
| D1 | 38mm |
| F | 30mm |
| r min | 1mm |
| r1r2 min | 0.3mm |
| Speed rating | 1800 rpm |
| Dynamic load | 16100 N |
| Basic static load | 19000 N |
| Fatigue load limit Pu | 2320 N |
| Max radial dynamic force | 17300 N |
| Max radial static force | 24500 N |
| Weight | 210 g |
