SKU: NA4822-MB

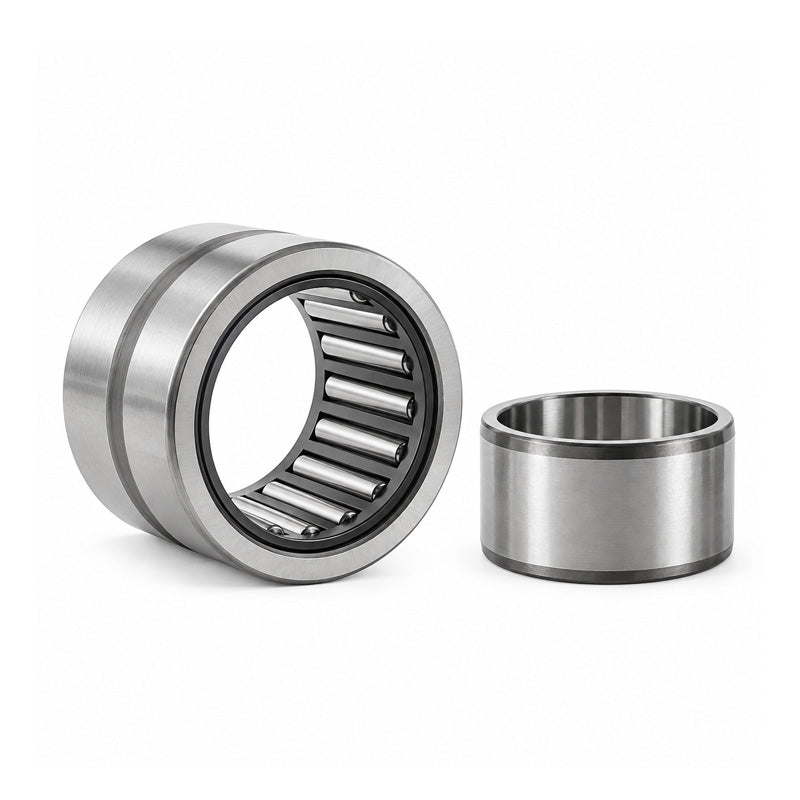

Major Brand NA4822 Needle Roller Bearing With Shaft Sleeve 110x140x30mm
Major Brand NA4822 Needle Roller Bearing With Shaft Sleeve 110x140x30mm
Regular price
CHF 164.00
ex VAT
Regular price
Sale price
CHF 164.00
ex VAT
In stock
Price Break
10+
CHF 129.96
19+
CHF 122.66
29+
CHF 121.20
39+
CHF 119.74
49+
CHF 118.28
74+
CHF 116.82
99+
CHF 109.52
199+
CHF 108.05
249+
CHF 106.59
499+
CHF 105.13
999+
CHF 102.21
Description
Description
|
Needle Roller Bearings with Flanges: Constructed with flanges in the outer ring to assist in the centralisation of the needle bearing race, sizes up to 17mm have no lubrication hole, or annular groove around the outside, above this size an oil hole and annular groove is provided. Generally a single row bearing with the exceptions of some of the larger sizes. Benefits: Flanged to provide centralisation, compact and self contained and includes the inner ring. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 140mm
- Width:
- 30mm

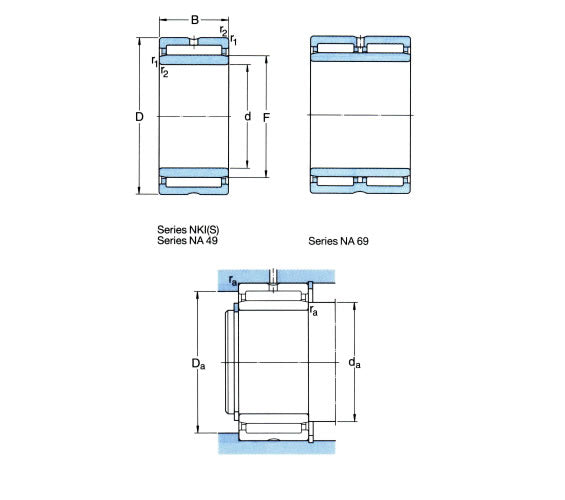

Technical
Technical
| d | 110mm |
|---|---|
| D | 140mm |
| B | 30mm |
| Dynamic load | 93500 N |
| Static load | 232000 N |
| Fatigue load limit Pu | 27500 N |
| Speed in grease | 2200 rpm |
| Speed in oil | 3400 rpm |
| F | 120mm |
| r1r2 | 1mm |
| S (axial disp) | 0.8mm |
| da min | 115mm |
| Da max | 135mm |
| ra max | 1mm |
